SDO HMI 2011-07-26 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.52 | 0.00 | 5.21 | 24.53 | 76.60 | 31.26 | 306.07 | 0.5859 | 206.8 | 104.5 | |
|
previous
or next observation for the same group /

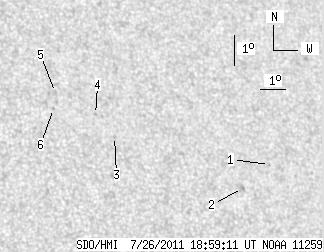

back to the solar disc SDO HMI 2011-07-26 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.81 | 23.52 | 81.00 | 35.67 | 301.54 | 0.6296 | -634.0 | -485.0 | |
| 0.00 | 2.17 | 0.00 | 1.36 | 22.82 | 79.70 | 34.36 | 301.22 | 0.6106 | -734.0 | -457.2 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 24.71 | 75.18 | 29.85 | 307.18 | 0.5697 | 553.0 | 450.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 25.45 | 74.65 | 29.31 | 308.74 | 0.5689 | 615.0 | 534.6 | |
| 0.00 | 1.81 | 0.00 | 1.08 | 26.22 | 73.31 | 27.97 | 311.04 | 0.5600 | 619.0 | 490.6 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 25.71 | 73.10 | 27.76 | 310.45 | 0.5537 | 822.0 | 624.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
