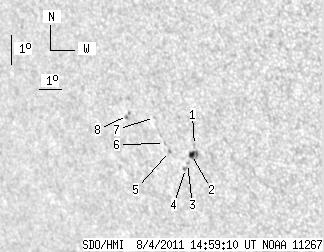

SDO HMI 2011-08-04 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.98 | 17.46 | 2.23 | 13.16 | -16.31 | 244.49 | -44.03 | 117.79 | 0.7563 | 143.7 | 131.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-04 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.21 | -16.17 | 245.32 | -43.20 | 118.04 | 0.7472 | 665.0 | 516.3 | |
| 2.98 | 6.69 | 2.23 | 4.99 | -16.48 | 245.10 | -43.42 | 118.30 | 0.7509 | 607.7 | 592.1 | |
| 0.00 | 1.36 | 0.00 | 1.02 | -16.80 | 244.83 | -43.69 | 118.55 | 0.7550 | 552.0 | 387.5 | |
| 0.00 | 1.99 | 0.00 | 1.50 | -16.97 | 244.69 | -43.83 | 118.68 | 0.7572 | 570.0 | 450.5 | |
| 0.00 | 1.54 | 0.00 | 1.17 | -16.46 | 244.13 | -44.39 | 117.78 | 0.7605 | -423.0 | -355.5 | |
| 0.00 | 1.09 | 0.00 | 0.83 | -16.21 | 243.98 | -44.54 | 117.40 | 0.7608 | -478.0 | -396.5 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -15.38 | 243.77 | -44.75 | 116.29 | 0.7593 | -325.0 | -262.8 | |
| 0.00 | 2.26 | 0.00 | 1.75 | -15.41 | 242.54 | -45.97 | 115.74 | 0.7718 | -590.0 | -555.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
