SDO HMI 2011-08-05 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.09 | 18.00 | 0.65 | 10.86 | 18.56 | 242.48 | -33.36 | 65.85 | 0.5727 | 70.3 | 120.4 | |
|
previous
or next observation for the same group /

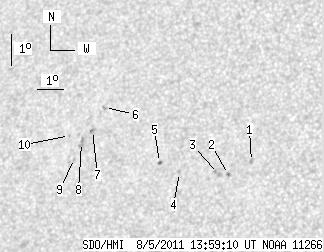

back to the solar disc SDO HMI 2011-08-05 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.10 | 18.44 | 246.55 | -29.30 | 63.91 | 0.5189 | -706.0 | -623.9 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 18.00 | 245.79 | -30.06 | 65.18 | 0.5270 | -714.0 | -594.7 | |
| 0.00 | 3.26 | 0.00 | 1.90 | 18.01 | 245.41 | -30.43 | 65.36 | 0.5320 | -717.0 | -549.8 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 17.97 | 243.96 | -31.88 | 66.22 | 0.5512 | -370.0 | -407.2 | |
| 1.09 | 1.45 | 0.65 | 0.87 | 18.23 | 243.15 | -32.70 | 66.16 | 0.5631 | -528.2 | -508.0 | |
| 0.00 | 1.63 | 0.00 | 1.01 | 19.82 | 240.64 | -35.21 | 64.73 | 0.6019 | 781.0 | 648.1 | |
| 0.00 | 2.17 | 0.00 | 1.34 | 19.08 | 240.35 | -35.49 | 66.05 | 0.6027 | 812.0 | 621.7 | |
| 0.00 | 3.89 | 0.00 | 2.41 | 18.68 | 240.01 | -35.83 | 66.82 | 0.6055 | 743.0 | 685.3 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 18.17 | 239.86 | -35.99 | 67.70 | 0.6056 | 721.0 | 610.4 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 18.87 | 239.49 | -36.36 | 66.74 | 0.6128 | 472.0 | 422.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
