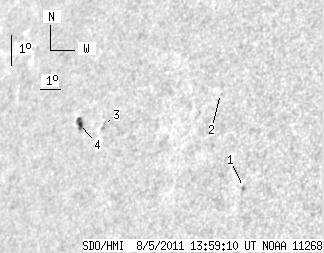

SDO HMI 2011-08-05 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.33 | 11.66 | 4.63 | 9.72 | 18.95 | 222.47 | -53.38 | 70.82 | 0.8046 | 109.4 | -257.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-05 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.31 | 17.72 | 229.49 | -46.35 | 71.30 | 0.7300 | -727.0 | -582.3 | |
| 0.00 | 0.72 | 0.00 | 0.55 | 20.53 | 227.33 | -48.52 | 68.01 | 0.7589 | -525.0 | -512.2 | |
| 0.00 | 2.62 | 0.00 | 2.21 | 19.08 | 221.90 | -53.94 | 70.78 | 0.8113 | -443.0 | -330.1 | |
| 5.33 | 6.51 | 4.63 | 5.65 | 19.03 | 220.59 | -55.26 | 71.00 | 0.8237 | 546.3 | 453.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
