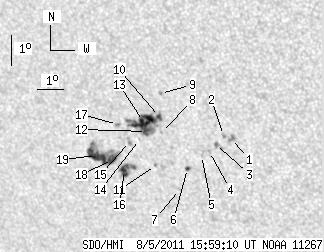

SDO HMI 2011-08-05 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.95 | 126.01 | 36.68 | 80.77 | -16.50 | 242.09 | -32.65 | 125.42 | 0.6368 | -104.9 | -131.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-05 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.80 | 0.00 | 2.33 | -16.14 | 245.73 | -29.01 | 128.10 | 0.5941 | 836.0 | 732.6 | |
| 0.00 | 1.72 | 0.00 | 1.06 | -16.06 | 245.46 | -29.28 | 127.73 | 0.5965 | 682.0 | 590.3 | |
| 0.54 | 1.90 | 0.34 | 1.18 | -16.37 | 245.11 | -29.63 | 127.84 | 0.6028 | 670.7 | 539.9 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -16.62 | 244.85 | -29.89 | 127.93 | 0.6076 | 547.0 | 402.6 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -16.77 | 244.53 | -30.21 | 127.85 | 0.6123 | 471.0 | 389.5 | |
| 1.63 | 2.26 | 1.03 | 1.43 | -17.23 | 243.93 | -30.81 | 127.93 | 0.6224 | -763.9 | -701.0 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -17.95 | 243.49 | -31.25 | 128.49 | 0.6327 | -568.0 | -394.6 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -16.09 | 243.17 | -31.57 | 125.75 | 0.6220 | -573.0 | -474.7 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -14.81 | 243.35 | -31.39 | 124.14 | 0.6105 | 692.0 | 523.1 | |
| 2.26 | 48.36 | 1.42 | 30.65 | -15.57 | 243.19 | -31.55 | 125.05 | 0.6179 | -777.5 | 18.5 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -17.20 | 242.74 | -32.00 | 126.87 | 0.6350 | 523.0 | 363.7 | |
| 3.89 | -10.00 | 2.47 | -10.00 | -16.09 | 242.61 | -32.13 | 125.28 | 0.6282 | -505.8 | 999999 | |
| 18.89 | -10.00 | 11.98 | -10.00 | -15.77 | 242.56 | -32.18 | 124.80 | 0.6265 | 787.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -16.37 | 242.30 | -32.44 | 125.40 | 0.6337 | 414.0 | 331.6 | |
| 0.00 | 3.07 | 0.00 | 1.97 | -16.46 | 241.90 | -32.84 | 125.20 | 0.6387 | -130.0 | 101.0 | |
| 7.59 | 14.55 | 4.94 | 9.45 | -17.44 | 241.52 | -33.22 | 126.18 | 0.6499 | -794.6 | -648.8 | |
| 0.00 | 1.99 | 0.00 | 1.28 | -15.93 | 241.55 | -33.19 | 124.21 | 0.6388 | 641.0 | 427.5 | |
| 6.69 | 39.78 | 4.36 | 26.00 | -17.10 | 241.13 | -33.61 | 125.43 | 0.6516 | -909.2 | -651.3 | |
| 15.46 | -18.00 | 10.14 | -18.00 | -17.00 | 240.53 | -34.21 | 124.85 | 0.6574 | -784.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
