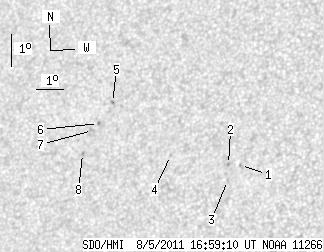

SDO HMI 2011-08-05 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.48 | 0.00 | 6.85 | 18.55 | 241.98 | -32.21 | 65.32 | 0.5575 | 31.9 | 187.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-05 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.57 | 18.02 | 245.86 | -28.33 | 64.09 | 0.5037 | -764.0 | -659.4 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 18.03 | 245.42 | -28.77 | 64.35 | 0.5097 | -838.0 | -718.8 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 17.54 | 245.47 | -28.72 | 65.25 | 0.5065 | -641.0 | -521.2 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 18.20 | 243.24 | -30.95 | 65.31 | 0.5397 | -693.0 | -527.3 | |
| 0.00 | 1.72 | 0.00 | 1.04 | 19.73 | 240.70 | -33.48 | 64.05 | 0.5797 | 818.0 | 642.7 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 19.05 | 240.32 | -33.87 | 65.36 | 0.5817 | 878.0 | 788.3 | |
| 0.00 | 2.26 | 0.00 | 1.38 | 18.82 | 240.14 | -34.05 | 65.83 | 0.5831 | 659.0 | 596.4 | |
| 0.00 | 1.81 | 0.00 | 1.10 | 18.08 | 239.92 | -34.27 | 67.14 | 0.5831 | 836.0 | 602.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
