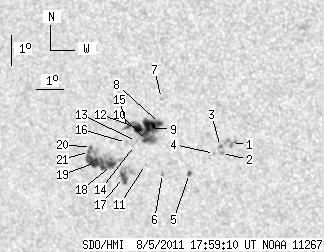

SDO HMI 2011-08-05 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.12 | 130.34 | 35.67 | 82.55 | -16.51 | 242.04 | -31.59 | 126.33 | 0.6253 | -40.2 | -121.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-05 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.69 | 0.00 | 4.07 | -16.12 | 245.65 | -27.99 | 129.05 | 0.5827 | 755.0 | 667.4 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -16.50 | 245.26 | -28.37 | 129.20 | 0.5901 | 702.0 | 628.7 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -16.27 | 245.26 | -28.37 | 128.89 | 0.5882 | 785.0 | 619.7 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -16.51 | 245.01 | -28.62 | 128.97 | 0.5930 | 586.0 | 498.9 | |
| 2.17 | 2.53 | 1.35 | 1.58 | -17.23 | 243.97 | -29.66 | 128.97 | 0.6101 | -755.8 | -453.5 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -17.28 | 242.97 | -30.66 | 128.13 | 0.6213 | 556.0 | 419.2 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -14.81 | 243.35 | -30.28 | 125.09 | 0.5979 | 719.0 | 558.0 | |
| 2.35 | 51.61 | 1.46 | 32.34 | -15.63 | 243.15 | -30.48 | 126.06 | 0.6065 | -607.2 | 192.4 | |
| 13.92 | -8.00 | 8.70 | -8.00 | -15.79 | 242.72 | -30.91 | 125.90 | 0.6125 | 937.9 | 999999 | |
| 2.89 | -8.00 | 1.82 | -8.00 | -16.22 | 242.57 | -31.06 | 126.36 | 0.6175 | -492.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -17.02 | 242.39 | -31.25 | 127.27 | 0.6255 | 438.0 | 290.8 | |
| 4.88 | -8.00 | 3.07 | -8.00 | -15.84 | 242.34 | -31.29 | 125.65 | 0.6171 | 702.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -16.27 | 242.19 | -31.44 | 126.11 | 0.6221 | 366.0 | 219.2 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -16.41 | 242.09 | -31.54 | 126.21 | 0.6242 | 185.0 | 187.7 | |
| 1.72 | -8.00 | 1.08 | -8.00 | -15.83 | 241.93 | -31.70 | 125.29 | 0.6216 | 471.1 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.03 | -16.33 | 241.80 | -31.83 | 125.86 | 0.6267 | -661.0 | -483.4 | |
| 6.42 | 13.47 | 4.12 | 8.64 | -17.50 | 241.47 | -32.16 | 127.13 | 0.6391 | -713.0 | -734.1 | |
| 4.79 | 44.92 | 3.08 | 28.99 | -17.13 | 241.09 | -32.54 | 126.33 | 0.6404 | -863.4 | -695.8 | |
| 15.18 | -18.00 | 9.83 | -18.00 | -17.06 | 240.49 | -33.14 | 125.77 | 0.6463 | -802.4 | 999999 | |
| 0.90 | -18.00 | 0.58 | -18.00 | -16.57 | 240.44 | -33.19 | 125.08 | 0.6434 | -660.0 | 999999 | |
| 0.90 | -18.00 | 0.58 | -18.00 | -16.71 | 240.34 | -33.30 | 125.18 | 0.6455 | -726.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
