SDO HMI 2011-08-05 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.35 | 0.00 | 8.42 | 18.62 | 242.44 | -30.64 | 64.31 | 0.5372 | 71.4 | 155.3 | |
|
previous
or next observation for the same group /

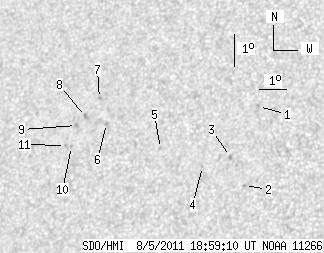

back to the solar disc SDO HMI 2011-08-05 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.77 | 19.69 | 246.63 | -26.45 | 59.63 | 0.4880 | -766.0 | -616.8 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 17.21 | 246.54 | -26.54 | 64.47 | 0.4748 | -843.0 | -643.6 | |
| 0.00 | 1.72 | 0.00 | 0.97 | 18.09 | 245.90 | -27.18 | 63.21 | 0.4883 | -751.0 | -614.9 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 17.73 | 244.95 | -28.13 | 64.53 | 0.4994 | -766.0 | -609.3 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 18.21 | 243.33 | -29.75 | 64.63 | 0.5237 | -551.0 | -399.2 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 18.88 | 241.17 | -31.91 | 64.66 | 0.5554 | 765.0 | 613.2 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 19.64 | 240.74 | -32.34 | 63.60 | 0.5646 | 850.0 | 666.4 | |
| 0.00 | 2.62 | 0.00 | 1.57 | 19.06 | 240.33 | -32.74 | 64.81 | 0.5671 | 792.0 | 685.9 | |
| 0.00 | 1.72 | 0.00 | 1.03 | 18.76 | 240.05 | -33.02 | 65.45 | 0.5695 | 763.0 | 717.0 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 18.10 | 240.01 | -33.07 | 66.59 | 0.5674 | 637.0 | 555.0 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 18.12 | 239.77 | -33.30 | 66.67 | 0.5705 | 655.0 | 526.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
