SDO HMI 2011-08-05 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.30 | 145.78 | 37.58 | 91.67 | -16.42 | 242.12 | -30.96 | 126.75 | 0.6178 | -93.7 | -65.0 | |
|
previous
or next observation for the same group /

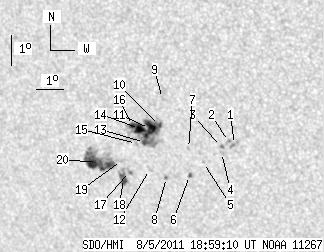

back to the solar disc SDO HMI 2011-08-05 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.71 | 0.00 | 2.24 | -16.14 | 245.77 | -27.31 | 129.77 | 0.5755 | 728.0 | 660.5 | |
| 0.00 | 2.17 | 0.00 | 1.31 | -16.05 | 245.57 | -27.51 | 129.45 | 0.5769 | 758.0 | 638.9 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -16.23 | 245.29 | -27.78 | 129.41 | 0.5815 | 749.0 | 648.3 | |
| 0.00 | 2.08 | 0.00 | 1.27 | -16.43 | 245.26 | -27.82 | 129.66 | 0.5835 | 674.0 | 574.8 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -16.80 | 244.55 | -28.52 | 129.46 | 0.5943 | 568.0 | 437.6 | |
| 1.54 | 2.08 | 0.95 | 1.29 | -17.25 | 243.97 | -29.11 | 129.52 | 0.6045 | -819.1 | -667.2 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -16.36 | 244.08 | -29.00 | 128.42 | 0.5959 | -731.0 | -556.6 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -17.37 | 243.10 | -29.97 | 128.87 | 0.6147 | 522.0 | 528.1 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -14.77 | 243.39 | -29.69 | 125.56 | 0.5909 | 520.0 | 408.4 | |
| 1.45 | 66.97 | 0.89 | 41.73 | -15.66 | 243.14 | -29.94 | 126.59 | 0.6007 | -627.6 | 44.8 | |
| 10.94 | -10.00 | 6.80 | -10.00 | -15.78 | 242.76 | -30.32 | 126.41 | 0.6059 | 1028.1 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.59 | -17.14 | 242.52 | -30.56 | 128.04 | 0.6191 | 572.0 | 334.4 | |
| 2.35 | -10.00 | 1.47 | -10.00 | -16.25 | 242.49 | -30.59 | 126.82 | 0.6125 | -443.6 | 999999 | |
| 7.14 | -10.00 | 4.46 | -10.00 | -15.80 | 242.38 | -30.69 | 126.11 | 0.6102 | 816.1 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.13 | -16.30 | 242.19 | -30.89 | 126.63 | 0.6162 | 613.0 | 413.8 | |
| 1.54 | -10.00 | 0.96 | -10.00 | -15.72 | 242.14 | -30.94 | 125.79 | 0.6123 | 804.6 | 999999 | |
| 0.00 | 2.71 | 0.00 | 1.72 | -17.25 | 241.75 | -31.32 | 127.51 | 0.6282 | -761.0 | -681.6 | |
| 5.69 | 9.76 | 3.64 | 6.23 | -17.49 | 241.48 | -31.60 | 127.61 | 0.6330 | -693.8 | -703.9 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -16.90 | 241.52 | -31.56 | 126.85 | 0.6280 | -728.0 | -634.2 | |
| 28.65 | 44.10 | 18.41 | 28.30 | -17.02 | 240.60 | -32.48 | 126.24 | 0.6389 | -815.7 | -671.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
