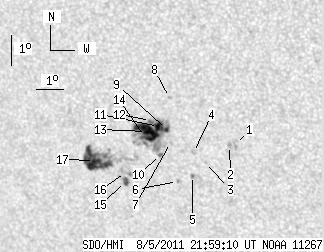

SDO HMI 2011-08-05 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.20 | 171.96 | 45.51 | 106.39 | -16.41 | 241.91 | -29.51 | 128.06 | 0.6019 | -94.1 | -189.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-05 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.52 | 0.00 | 2.10 | -16.14 | 245.67 | -25.75 | 131.43 | 0.5587 | 650.0 | 624.4 | |
| 0.00 | 2.53 | 0.00 | 1.51 | -16.19 | 245.45 | -25.97 | 131.25 | 0.5614 | 872.0 | 647.1 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -16.79 | 244.51 | -26.91 | 131.09 | 0.5770 | 478.0 | 416.3 | |
| 0.00 | 2.44 | 0.00 | 1.48 | -16.48 | 244.13 | -27.29 | 130.28 | 0.5784 | -620.0 | -540.8 | |
| 0.99 | 1.45 | 0.61 | 0.88 | -17.25 | 243.97 | -27.44 | 131.16 | 0.5868 | -802.5 | -848.0 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -17.48 | 243.39 | -28.02 | 130.88 | 0.5949 | 872.0 | 621.7 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -16.19 | 243.35 | -28.07 | 129.10 | 0.5844 | -824.0 | -667.8 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -14.72 | 243.53 | -27.88 | 127.20 | 0.5700 | 685.0 | 515.9 | |
| 2.53 | 83.42 | 1.54 | 51.07 | -15.77 | 243.27 | -28.15 | 128.44 | 0.5818 | -855.9 | -4.3 | |
| 1.54 | -9.00 | 0.94 | -9.00 | -16.61 | 242.92 | -28.49 | 129.26 | 0.5926 | -694.3 | 999999 | |
| 5.78 | -9.00 | 3.52 | -9.00 | -15.69 | 242.99 | -28.42 | 128.06 | 0.5841 | 885.9 | 999999 | |
| 0.45 | -9.00 | 0.28 | -9.00 | -15.51 | 242.73 | -28.68 | 127.55 | 0.5855 | 759.0 | 999999 | |
| 22.32 | -9.00 | 13.68 | -9.00 | -15.88 | 242.53 | -28.88 | 127.88 | 0.5908 | 879.7 | 999999 | |
| 2.71 | -9.00 | 1.67 | -9.00 | -16.05 | 242.43 | -28.98 | 128.02 | 0.5933 | -348.9 | 999999 | |
| 3.98 | 5.78 | 2.50 | 3.63 | -17.58 | 241.48 | -29.94 | 129.20 | 0.6161 | -698.1 | -489.1 | |
| 0.00 | 5.51 | 0.00 | 3.45 | -17.28 | 241.53 | -29.88 | 128.85 | 0.6131 | -817.0 | -709.4 | |
| 32.90 | 63.53 | 20.77 | 39.95 | -16.94 | 240.45 | -30.97 | 127.44 | 0.6222 | -855.2 | -529.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
