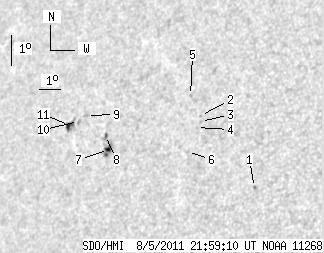

SDO HMI 2011-08-05 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.59 | 31.18 | 6.65 | 23.66 | 18.90 | 222.57 | -48.84 | 70.20 | 0.7588 | -167.9 | -85.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-05 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.79 | 17.76 | 229.58 | -41.83 | 70.26 | 0.6772 | -675.0 | -601.8 | |
| 0.00 | 0.90 | 0.00 | 0.64 | 19.81 | 226.52 | -44.89 | 68.15 | 0.7177 | -637.0 | -522.9 | |
| 0.00 | 0.72 | 0.00 | 0.51 | 19.62 | 226.59 | -44.82 | 68.39 | 0.7165 | -671.0 | -605.0 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 19.42 | 226.48 | -44.94 | 68.69 | 0.7173 | -698.0 | -559.9 | |
| 0.00 | 1.08 | 0.00 | 0.78 | 20.39 | 225.85 | -45.57 | 67.53 | 0.7266 | -652.0 | -563.5 | |
| 0.00 | 1.27 | 0.00 | 0.90 | 18.66 | 226.33 | -45.08 | 69.78 | 0.7173 | -621.0 | -469.5 | |
| 2.71 | 9.22 | 2.05 | 6.97 | 18.45 | 222.68 | -48.73 | 70.81 | 0.7573 | -556.7 | -368.6 | |
| 1.36 | 3.71 | 1.03 | 2.82 | 18.86 | 222.37 | -49.04 | 70.32 | 0.7612 | -373.0 | -242.0 | |
| 0.00 | 1.63 | 0.00 | 1.27 | 19.40 | 221.20 | -50.21 | 69.83 | 0.7744 | 311.0 | 313.9 | |
| 0.00 | 1.90 | 0.00 | 1.49 | 19.19 | 220.89 | -50.53 | 70.15 | 0.7773 | 748.0 | 575.1 | |
| 4.52 | 8.77 | 3.57 | 6.91 | 19.03 | 220.50 | -50.92 | 70.42 | 0.7811 | 549.3 | 550.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
