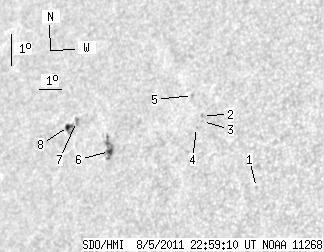

SDO HMI 2011-08-05 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.59 | 28.90 | 5.05 | 21.69 | 18.84 | 222.66 | -48.21 | 70.16 | 0.7518 | -218.3 | -133.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-05 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.72 | 17.77 | 229.58 | -41.29 | 70.10 | 0.6705 | -633.0 | -605.2 | |
| 0.00 | 1.72 | 0.00 | 1.21 | 19.83 | 226.55 | -44.31 | 67.98 | 0.7111 | -609.0 | -546.3 | |
| 0.00 | 0.81 | 0.00 | 0.57 | 19.64 | 226.62 | -44.24 | 68.22 | 0.7099 | -668.0 | -593.7 | |
| 0.00 | 0.90 | 0.00 | 0.64 | 19.44 | 226.42 | -44.44 | 68.56 | 0.7117 | -638.0 | -561.7 | |
| 0.00 | 0.99 | 0.00 | 0.71 | 20.41 | 225.88 | -44.98 | 67.36 | 0.7201 | -602.0 | -497.3 | |
| 3.07 | 12.83 | 2.30 | 9.60 | 18.40 | 222.73 | -48.14 | 70.76 | 0.7507 | -706.2 | -464.8 | |
| 0.00 | 3.07 | 0.00 | 2.39 | 19.20 | 220.78 | -50.08 | 70.07 | 0.7727 | 802.0 | 654.3 | |
| 3.52 | 7.50 | 2.75 | 5.85 | 19.02 | 220.46 | -50.41 | 70.36 | 0.7758 | 567.1 | 568.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
