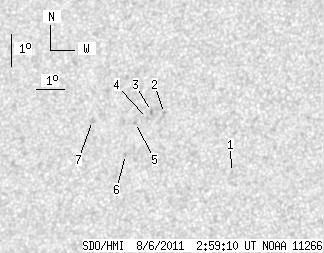

SDO HMI 2011-08-06 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.94 | 0.00 | 6.85 | 19.08 | 240.50 | -28.16 | 62.07 | 0.5067 | 541.7 | 540.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-06 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.50 | 17.78 | 243.98 | -24.69 | 62.01 | 0.4522 | -730.0 | -484.1 | |
| 0.00 | 2.08 | 0.00 | 1.19 | 19.50 | 241.30 | -27.37 | 60.74 | 0.4986 | 673.0 | 687.9 | |
| 0.00 | 2.08 | 0.00 | 1.19 | 19.54 | 240.82 | -27.85 | 61.02 | 0.5052 | 891.0 | 729.8 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 19.32 | 240.71 | -27.95 | 61.51 | 0.5053 | 705.0 | 524.8 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 19.17 | 240.30 | -28.36 | 62.06 | 0.5099 | 854.0 | 626.4 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 18.16 | 240.12 | -28.54 | 64.05 | 0.5069 | 788.0 | 602.7 | |
| 0.00 | 2.62 | 0.00 | 1.53 | 19.16 | 238.72 | -29.95 | 63.12 | 0.5308 | 611.0 | 539.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
