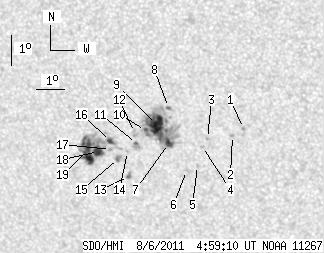

SDO HMI 2011-08-06 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.06 | 188.57 | 36.08 | 112.54 | -16.44 | 241.94 | -25.63 | 132.03 | 0.5603 | -259.0 | -144.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-06 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.57 | -15.94 | 245.74 | -21.83 | 135.85 | 0.5153 | 916.0 | 819.2 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -16.19 | 245.33 | -22.23 | 135.67 | 0.5221 | 683.0 | 515.6 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -16.33 | 244.46 | -23.11 | 134.77 | 0.5326 | -542.0 | -568.1 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -16.60 | 244.25 | -23.32 | 134.89 | 0.5375 | -557.0 | -540.7 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -17.24 | 243.99 | -23.58 | 135.45 | 0.5466 | -699.0 | -557.1 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -17.42 | 243.58 | -23.98 | 135.21 | 0.5526 | 590.0 | 411.8 | |
| 4.70 | 100.02 | 2.78 | 59.10 | -16.55 | 243.07 | -24.49 | 133.44 | 0.5494 | -972.9 | 75.9 | |
| 1.45 | 2.26 | 0.85 | 1.33 | -15.37 | 243.23 | -24.34 | 131.95 | 0.5364 | 941.7 | 673.4 | |
| 16.91 | -7.00 | 9.99 | -7.00 | -15.95 | 242.74 | -24.83 | 132.21 | 0.5472 | 999.2 | 999999 | |
| 1.09 | -7.00 | 0.64 | -7.00 | -16.16 | 242.32 | -25.24 | 132.05 | 0.5537 | 410.5 | 999999 | |
| 1.18 | 4.97 | 0.70 | 2.98 | -16.61 | 241.94 | -25.62 | 132.24 | 0.5619 | 334.5 | 59.0 | |
| 0.00 | 3.17 | 0.00 | 1.89 | -16.25 | 241.92 | -25.64 | 131.73 | 0.5588 | -369.0 | -261.3 | |
| 2.08 | 2.71 | 1.26 | 1.64 | -17.72 | 241.49 | -26.07 | 133.25 | 0.5770 | -713.5 | -753.3 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -16.89 | 241.58 | -25.98 | 132.24 | 0.5683 | -583.0 | -484.5 | |
| 0.00 | 3.71 | 0.00 | 2.24 | -17.14 | 241.23 | -26.34 | 132.19 | 0.5744 | -844.0 | -741.5 | |
| 3.17 | 61.95 | 1.91 | 37.61 | -16.59 | 241.03 | -26.54 | 131.23 | 0.5716 | -869.5 | -639.5 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -16.85 | 240.99 | -26.58 | 131.55 | 0.5744 | -845.0 | -720.6 | |
| 8.59 | -16.00 | 5.22 | -16.00 | -16.94 | 240.55 | -27.02 | 131.21 | 0.5799 | -954.2 | 999999 | |
| 20.89 | -16.00 | 12.73 | -16.00 | -16.93 | 240.15 | -27.41 | 130.79 | 0.5840 | -842.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
