SDO HMI 2011-08-06 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.69 | 25.69 | 6.08 | 17.73 | 18.75 | 223.07 | -43.40 | 69.22 | 0.6976 | -132.1 | -227.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-06 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

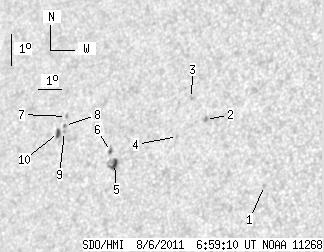

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.79 | 17.86 | 229.56 | -36.91 | 68.63 | 0.6161 | -681.0 | -540.1 | |
| 0.00 | 2.17 | 0.00 | 1.43 | 19.74 | 226.62 | -39.85 | 66.78 | 0.6586 | -820.0 | -691.9 | |
| 0.00 | 1.54 | 0.00 | 1.02 | 20.36 | 225.84 | -40.64 | 66.15 | 0.6699 | -681.0 | -516.8 | |
| 0.00 | 0.99 | 0.00 | 0.66 | 19.14 | 225.61 | -40.86 | 67.99 | 0.6689 | -394.0 | -430.3 | |
| 4.16 | 8.41 | 2.86 | 5.78 | 18.12 | 223.19 | -43.28 | 70.13 | 0.6951 | -771.9 | -549.5 | |
| 1.18 | 3.17 | 0.81 | 2.19 | 18.48 | 222.90 | -43.57 | 69.70 | 0.6993 | -501.7 | -543.6 | |
| 0.00 | 1.45 | 0.00 | 1.04 | 19.42 | 220.58 | -45.89 | 68.96 | 0.7278 | 618.0 | 524.6 | |
| 0.00 | 1.45 | 0.00 | 1.04 | 19.13 | 220.59 | -45.88 | 69.34 | 0.7271 | 719.0 | 611.2 | |
| 0.00 | 0.90 | 0.00 | 0.65 | 18.95 | 220.66 | -45.81 | 69.58 | 0.7260 | 767.0 | 690.3 | |
| 3.35 | 4.34 | 2.41 | 3.13 | 18.90 | 220.40 | -46.07 | 69.71 | 0.7288 | 563.8 | 417.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
