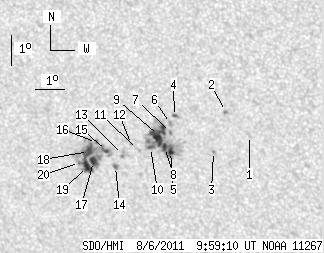

SDO HMI 2011-08-06 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.00 | 166.58 | 30.51 | 97.46 | -16.46 | 241.68 | -23.14 | 134.96 | 0.5343 | -79.4 | -168.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-06 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.82 | -15.90 | 245.78 | -19.05 | 139.64 | 0.4867 | 640.0 | 540.7 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -15.14 | 245.05 | -19.78 | 137.51 | 0.4856 | 786.0 | 644.3 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -16.47 | 244.50 | -20.32 | 138.61 | 0.5057 | -822.0 | -675.0 | |
| 1.09 | 2.89 | 0.62 | 1.66 | -15.37 | 243.30 | -21.52 | 135.45 | 0.5062 | 899.8 | 626.9 | |
| 3.07 | 78.05 | 1.78 | 45.20 | -16.53 | 243.03 | -21.79 | 136.72 | 0.5212 | -1093.6 | 34.0 | |
| 0.00 | 2.44 | 0.00 | 1.40 | -15.61 | 243.14 | -21.69 | 135.57 | 0.5104 | 903.0 | 689.6 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -15.91 | 243.11 | -21.72 | 135.94 | 0.5138 | 936.0 | 774.3 | |
| 2.44 | -5.00 | 1.42 | -5.00 | -16.41 | 242.84 | -21.98 | 136.30 | 0.5218 | 574.1 | 999999 | |
| 16.37 | -5.00 | 9.48 | -5.00 | -16.02 | 242.68 | -22.14 | 135.56 | 0.5194 | 954.1 | 999999 | |
| 2.08 | -5.00 | 1.21 | -5.00 | -16.43 | 242.36 | -22.47 | 135.72 | 0.5270 | -325.5 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.27 | -16.52 | 241.90 | -22.92 | 135.26 | 0.5326 | 573.0 | 348.8 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -16.36 | 241.72 | -23.11 | 134.82 | 0.5330 | 453.0 | 425.4 | |
| 0.00 | 2.71 | 0.00 | 1.59 | -16.70 | 241.36 | -23.47 | 134.86 | 0.5402 | -708.0 | -675.8 | |
| 2.17 | 2.53 | 1.28 | 1.50 | -17.11 | 241.06 | -23.76 | 135.06 | 0.5473 | -772.2 | -570.5 | |
| 1.45 | 68.91 | 0.85 | 40.91 | -16.60 | 240.82 | -24.01 | 134.07 | 0.5447 | -959.8 | -566.4 | |
| 1.27 | -15.00 | 0.75 | -15.00 | -16.35 | 240.51 | -24.32 | 133.36 | 0.5457 | -851.6 | 999999 | |
| 6.06 | -15.00 | 3.60 | -15.00 | -16.98 | 240.31 | -24.51 | 134.00 | 0.5538 | -973.6 | 999999 | |
| 7.23 | -15.00 | 4.29 | -15.00 | -16.66 | 240.18 | -24.64 | 133.41 | 0.5520 | -973.2 | 999999 | |
| 7.05 | -15.00 | 4.20 | -15.00 | -17.16 | 240.08 | -24.75 | 133.97 | 0.5580 | -803.2 | 999999 | |
| 1.72 | -15.00 | 1.03 | -15.00 | -17.04 | 239.81 | -25.01 | 133.51 | 0.5596 | -389.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
