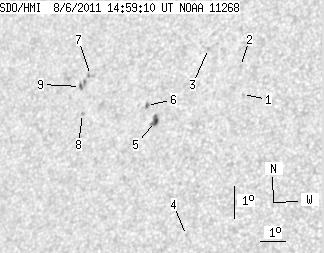

SDO HMI 2011-08-06 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.51 | 20.33 | 4.21 | 13.24 | 18.44 | 222.62 | -39.46 | 68.58 | 0.6496 | -173.3 | 92.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-06 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.17 | 18.96 | 226.93 | -35.14 | 66.16 | 0.5973 | -685.0 | -605.7 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 19.83 | 226.64 | -35.43 | 64.91 | 0.6044 | -721.0 | -597.7 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 20.31 | 225.22 | -36.85 | 64.77 | 0.6240 | -735.0 | -602.1 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 14.50 | 225.71 | -36.37 | 73.90 | 0.5997 | 635.0 | 545.9 | |
| 3.52 | 6.24 | 2.25 | 3.99 | 17.92 | 223.71 | -38.37 | 69.04 | 0.6347 | -710.7 | -601.2 | |
| 1.45 | 1.72 | 0.93 | 1.11 | 18.39 | 223.21 | -38.86 | 68.48 | 0.6422 | -626.9 | -645.3 | |
| 0.00 | 2.98 | 0.00 | 2.00 | 19.16 | 220.63 | -41.44 | 68.15 | 0.6759 | 743.0 | 553.4 | |
| 0.00 | 1.08 | 0.00 | 0.72 | 17.96 | 220.64 | -41.43 | 69.89 | 0.6726 | 682.0 | 563.6 | |
| 1.54 | 4.61 | 1.03 | 3.10 | 18.79 | 220.31 | -41.76 | 68.78 | 0.6787 | 479.5 | 531.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
