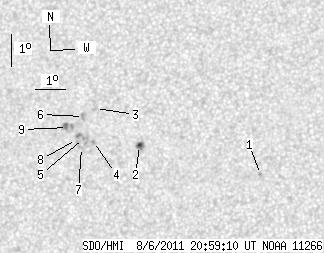

SDO HMI 2011-08-06 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.44 | 32.09 | 1.28 | 17.05 | 19.01 | 241.57 | -17.17 | 50.74 | 0.3615 | 448.7 | 558.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-06 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.94 | 247.10 | -11.65 | 42.94 | 0.2832 | -737.0 | -588.2 | |
| 2.44 | 4.97 | 1.28 | 2.62 | 18.74 | 243.04 | -15.70 | 49.12 | 0.3404 | -864.7 | -910.8 | |
| 0.00 | 1.72 | 0.00 | 0.92 | 19.85 | 241.45 | -17.29 | 49.19 | 0.3710 | 759.0 | 606.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 18.82 | 241.50 | -17.25 | 51.42 | 0.3606 | 1097.0 | 915.4 | |
| 0.00 | 7.50 | 0.00 | 3.99 | 18.91 | 241.15 | -17.59 | 51.74 | 0.3658 | 1034.0 | 804.3 | |
| 0.00 | 3.43 | 0.00 | 1.83 | 19.59 | 241.07 | -17.67 | 50.33 | 0.3731 | 865.0 | 770.2 | |
| 0.00 | 2.17 | 0.00 | 1.15 | 18.62 | 241.11 | -17.63 | 52.44 | 0.3637 | 721.0 | 633.9 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 18.87 | 240.92 | -17.83 | 52.17 | 0.3684 | 623.0 | 669.0 | |
| 0.00 | 7.50 | 0.00 | 4.01 | 19.23 | 240.57 | -18.17 | 51.84 | 0.3761 | 909.0 | 789.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
