SDO HMI 2011-08-07 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.78 | 39.23 | 3.55 | 20.62 | 18.91 | 241.52 | -15.02 | 47.52 | 0.3336 | 488.6 | 592.0 | |
|
previous
or next observation for the same group /

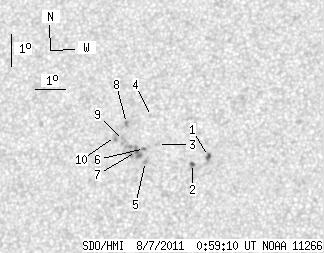

back to the solar disc SDO HMI 2011-08-07 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.17 | 4.97 | 1.13 | 2.59 | 18.68 | 243.55 | -12.98 | 44.16 | 0.3069 | -972.2 | -753.8 | |
| 1.54 | 2.44 | 0.80 | 1.27 | 18.45 | 243.04 | -13.49 | 45.77 | 0.3103 | -786.8 | -780.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 19.01 | 241.84 | -14.70 | 46.76 | 0.3307 | 861.0 | 603.8 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 19.88 | 241.56 | -14.98 | 45.31 | 0.3434 | 280.0 | 395.1 | |
| 0.00 | 2.08 | 0.00 | 1.09 | 18.48 | 241.49 | -15.05 | 48.67 | 0.3294 | 997.0 | 846.1 | |
| 1.17 | 1.63 | 0.62 | 0.85 | 18.88 | 241.42 | -15.12 | 47.84 | 0.3344 | 922.5 | 948.6 | |
| 1.90 | 15.91 | 1.00 | 8.37 | 18.78 | 241.16 | -15.38 | 48.53 | 0.3365 | 1117.9 | 818.0 | |
| 0.00 | 2.62 | 0.00 | 1.39 | 19.64 | 240.74 | -15.80 | 47.28 | 0.3505 | 1077.0 | 864.1 | |
| 0.00 | 3.16 | 0.00 | 1.67 | 19.11 | 240.70 | -15.84 | 48.56 | 0.3456 | 772.0 | 727.5 | |
| 0.00 | 3.25 | 0.00 | 1.72 | 19.23 | 240.42 | -16.12 | 48.76 | 0.3502 | 717.0 | 676.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
