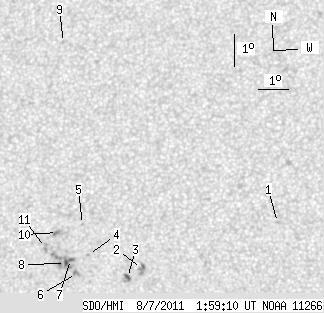

SDO HMI 2011-08-07 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.33 | 46.53 | 3.31 | 24.40 | 19.04 | 241.75 | -14.24 | 45.80 | 0.3259 | 350.0 | 410.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-07 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.42 | 20.16 | 247.99 | -8.00 | 28.31 | 0.2768 | -854.0 | -700.0 | |
| 0.00 | 5.78 | 0.00 | 3.00 | 18.64 | 243.63 | -12.36 | 42.91 | 0.2992 | -1100.0 | -943.9 | |
| 2.62 | 5.15 | 1.36 | 2.68 | 18.35 | 243.19 | -12.80 | 44.57 | 0.3009 | -899.4 | -720.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 19.04 | 241.85 | -14.14 | 45.67 | 0.3243 | 912.0 | 704.5 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 19.97 | 241.56 | -14.43 | 44.10 | 0.3379 | 778.0 | 546.3 | |
| 0.00 | 3.98 | 0.00 | 2.08 | 18.44 | 241.50 | -14.49 | 47.75 | 0.3220 | 1022.0 | 801.7 | |
| 1.81 | 20.34 | 0.95 | 10.67 | 18.87 | 241.26 | -14.72 | 47.16 | 0.3294 | 958.0 | 822.4 | |
| 1.90 | -7.00 | 1.00 | -7.00 | 18.74 | 241.11 | -14.88 | 47.75 | 0.3299 | 1134.9 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 25.72 | 240.26 | -15.73 | 35.84 | 0.4189 | 716.0 | 566.2 | |
| 0.00 | 3.98 | 0.00 | 2.10 | 19.70 | 240.75 | -15.24 | 46.19 | 0.3443 | 946.0 | 832.8 | |
| 0.00 | 3.52 | 0.00 | 1.86 | 19.22 | 240.40 | -15.59 | 47.89 | 0.3436 | 717.0 | 636.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
