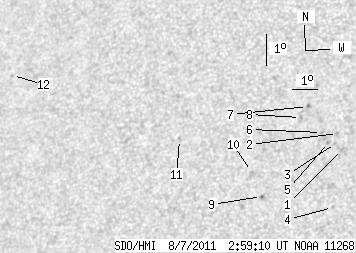

SDO HMI 2011-08-07 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.18 | 16.09 | 0.69 | 9.52 | 19.26 | 224.29 | -31.15 | 63.58 | 0.5460 | -472.2 | -382.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-07 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.99 | 19.15 | 226.83 | -28.61 | 62.36 | 0.5126 | -714.0 | -630.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 19.64 | 226.55 | -28.89 | 61.67 | 0.5190 | -710.0 | -575.5 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 19.32 | 226.54 | -28.90 | 62.24 | 0.5174 | -736.0 | -628.5 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 17.34 | 226.79 | -28.65 | 65.76 | 0.5039 | -587.0 | -493.1 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 19.34 | 226.28 | -29.16 | 62.38 | 0.5210 | -742.0 | -630.8 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 19.64 | 225.96 | -29.48 | 62.06 | 0.5268 | -779.0 | -562.9 | |
| 0.00 | 1.99 | 0.00 | 1.17 | 20.42 | 225.27 | -30.17 | 61.13 | 0.5399 | -757.0 | -645.0 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 20.07 | 225.08 | -30.36 | 61.86 | 0.5404 | -673.0 | -606.8 | |
| 1.18 | 1.72 | 0.69 | 1.01 | 17.54 | 224.14 | -31.30 | 66.84 | 0.5409 | -629.9 | -339.2 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 18.29 | 223.61 | -31.83 | 65.78 | 0.5511 | -653.0 | -495.1 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 19.13 | 220.65 | -34.79 | 65.80 | 0.5931 | 784.0 | 593.6 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 20.67 | 213.29 | -42.15 | 66.25 | 0.6883 | 482.0 | 412.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
