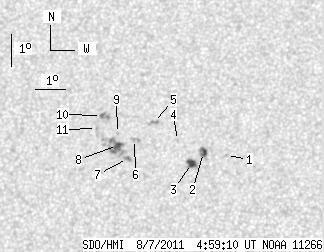

SDO HMI 2011-08-07 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.75 | 59.22 | 7.63 | 30.78 | 18.86 | 241.81 | -12.54 | 42.68 | 0.3039 | -50.7 | 476.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-07 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.28 | 18.55 | 244.67 | -9.68 | 36.47 | 0.2692 | -849.0 | -566.5 | |
| 3.62 | 6.42 | 1.86 | 3.31 | 18.63 | 243.91 | -10.43 | 38.31 | 0.2780 | -1035.5 | -715.7 | |
| 5.97 | 7.87 | 3.08 | 4.05 | 18.28 | 243.55 | -10.80 | 40.09 | 0.2775 | -959.4 | -623.0 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 18.99 | 243.04 | -11.30 | 39.66 | 0.2916 | -770.0 | -629.8 | |
| 0.00 | 4.25 | 0.00 | 2.21 | 19.53 | 242.21 | -12.13 | 40.36 | 0.3072 | -860.0 | -647.1 | |
| 0.00 | 3.53 | 0.00 | 1.83 | 18.99 | 241.63 | -12.72 | 42.89 | 0.3072 | 1000.0 | 668.4 | |
| 0.00 | 3.16 | 0.00 | 1.64 | 18.39 | 241.44 | -12.90 | 44.72 | 0.3024 | 1064.0 | 799.0 | |
| 3.62 | 24.68 | 1.88 | 12.87 | 18.79 | 241.08 | -13.26 | 44.52 | 0.3111 | 1201.0 | 839.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 19.16 | 241.05 | -13.29 | 43.70 | 0.3157 | 854.0 | 681.6 | |
| 1.54 | 6.15 | 0.81 | 3.22 | 19.71 | 240.47 | -13.87 | 43.62 | 0.3285 | 761.2 | 784.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 19.30 | 240.34 | -14.00 | 44.80 | 0.3254 | 826.0 | 570.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
