SDO HMI 2011-08-07 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.76 | 0.00 | 8.63 | 19.46 | 224.26 | -30.08 | 62.62 | 0.5333 | -491.4 | -425.3 | |
|
previous
or next observation for the same group /

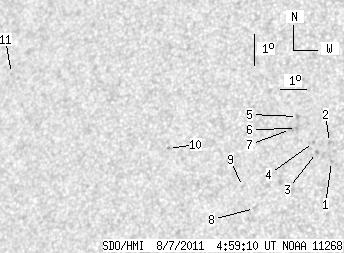

back to the solar disc SDO HMI 2011-08-07 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.67 | 19.08 | 226.76 | -27.58 | 61.78 | 0.4985 | -840.0 | -687.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 19.67 | 226.58 | -27.76 | 60.83 | 0.5043 | -676.0 | -555.7 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 19.34 | 226.17 | -28.17 | 61.73 | 0.5078 | -842.0 | -764.9 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 19.64 | 226.00 | -28.34 | 61.29 | 0.5118 | -789.0 | -633.5 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 20.42 | 225.25 | -29.09 | 60.42 | 0.5260 | -809.0 | -646.6 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 20.05 | 225.29 | -29.05 | 61.05 | 0.5233 | -804.0 | -660.3 | |
| 0.00 | 2.44 | 0.00 | 1.42 | 20.01 | 225.08 | -29.26 | 61.27 | 0.5259 | -525.0 | -541.0 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 17.49 | 224.23 | -30.11 | 66.32 | 0.5245 | -763.0 | -630.1 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 18.14 | 223.67 | -30.68 | 65.45 | 0.5351 | -722.0 | -454.5 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 19.17 | 220.64 | -33.71 | 65.24 | 0.5794 | 753.0 | 600.8 | |
| 0.00 | 0.72 | 0.00 | 0.48 | 21.10 | 213.69 | -40.65 | 65.14 | 0.6721 | 612.0 | 537.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
