SDO HMI 2011-08-07 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.87 | 127.31 | 20.84 | 70.01 | -16.83 | 242.25 | -11.54 | 153.95 | 0.4359 | -251.2 | -171.1 | |
|
previous
or next observation for the same group /

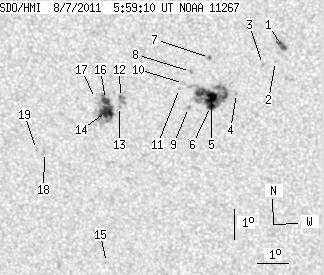

back to the solar disc SDO HMI 2011-08-07 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.61 | 6.15 | 2.47 | 3.30 | -14.96 | 245.89 | -7.90 | 159.73 | 0.3851 | 1051.1 | 925.0 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -15.48 | 245.68 | -8.11 | 159.72 | 0.3942 | 689.0 | 521.6 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -15.59 | 245.26 | -8.53 | 158.87 | 0.3982 | 755.0 | 571.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -16.56 | 244.39 | -9.41 | 157.86 | 0.4176 | -1029.0 | -810.2 | |
| 9.04 | 58.05 | 4.94 | 31.73 | -16.70 | 243.57 | -10.22 | 156.30 | 0.4248 | 944.4 | -12.6 | |
| 4.79 | -5.00 | 2.63 | -5.00 | -17.00 | 243.52 | -10.27 | 156.50 | 0.4294 | -996.6 | 999999 | |
| 0.36 | 2.35 | 0.20 | 1.27 | -15.39 | 243.58 | -10.22 | 154.96 | 0.4058 | 1008.5 | 797.1 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -15.86 | 242.94 | -10.85 | 154.13 | 0.4169 | 909.0 | 740.1 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -17.05 | 242.81 | -10.99 | 155.11 | 0.4347 | -882.0 | -650.8 | |
| 0.00 | 2.08 | 0.00 | 1.14 | -16.26 | 242.69 | -11.10 | 154.05 | 0.4243 | 325.0 | 192.9 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -16.43 | 242.55 | -11.24 | 153.95 | 0.4276 | -155.0 | -195.1 | |
| 0.45 | 5.33 | 0.25 | 2.95 | -16.77 | 240.62 | -13.18 | 150.60 | 0.4465 | -1020.6 | -899.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -17.07 | 240.56 | -13.23 | 150.84 | 0.4509 | -871.0 | -729.3 | |
| 13.56 | 39.78 | 7.54 | 22.13 | -17.25 | 240.12 | -13.67 | 150.24 | 0.4567 | -1001.6 | -503.3 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -22.37 | 239.66 | -14.13 | 154.58 | 0.5280 | -652.0 | -516.6 | |
| 5.06 | -14.00 | 2.81 | -14.00 | -16.85 | 240.12 | -13.68 | 149.78 | 0.4514 | -1087.3 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -16.83 | 239.79 | -14.00 | 149.16 | 0.4536 | -355.0 | -261.9 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -18.68 | 237.95 | -15.85 | 148.16 | 0.4924 | -711.0 | -515.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -18.59 | 237.69 | -16.10 | 147.64 | 0.4933 | -741.0 | -516.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
