SDO HMI 2011-08-07 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.66 | 65.99 | 5.99 | 34.09 | 19.02 | 241.57 | -10.59 | 37.60 | 0.2850 | 167.1 | 544.4 | |
|
previous
or next observation for the same group /

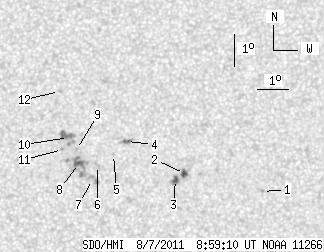

back to the solar disc SDO HMI 2011-08-07 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.69 | 18.08 | 246.86 | -5.30 | 23.02 | 0.2254 | -911.0 | -657.8 | |
| 3.62 | 4.34 | 1.85 | 2.22 | 18.61 | 244.32 | -7.83 | 30.87 | 0.2528 | -1138.5 | -953.1 | |
| 3.16 | 5.24 | 1.62 | 2.68 | 18.42 | 244.04 | -8.11 | 32.17 | 0.2526 | -1078.9 | -809.9 | |
| 0.99 | 5.06 | 0.51 | 2.62 | 19.58 | 242.38 | -9.77 | 34.46 | 0.2839 | -957.5 | -638.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 19.17 | 241.98 | -10.17 | 36.42 | 0.2823 | 719.0 | 540.7 | |
| 0.00 | 3.80 | 0.00 | 1.96 | 18.81 | 241.48 | -10.67 | 38.51 | 0.2828 | 935.0 | 530.3 | |
| 0.00 | 6.33 | 0.00 | 3.26 | 18.37 | 241.34 | -10.81 | 39.90 | 0.2787 | 532.0 | 703.6 | |
| 3.89 | 22.78 | 2.01 | 11.79 | 18.86 | 240.85 | -11.30 | 39.95 | 0.2900 | 1113.1 | 847.4 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 19.30 | 240.76 | -11.39 | 39.18 | 0.2965 | 803.0 | 640.0 | |
| 0.00 | 12.84 | 0.00 | 6.67 | 19.67 | 240.47 | -11.68 | 39.04 | 0.3041 | 954.0 | 807.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 19.29 | 240.30 | -11.85 | 40.28 | 0.3012 | 764.0 | 629.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 21.10 | 240.06 | -12.10 | 36.98 | 0.3264 | 647.0 | 565.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
