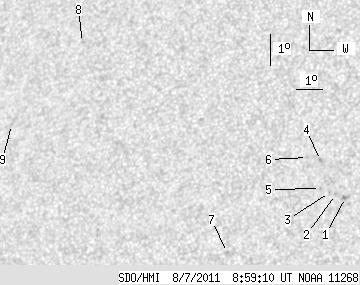

SDO HMI 2011-08-07 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.39 | 0.00 | 7.19 | 20.00 | 223.30 | -28.86 | 60.77 | 0.5191 | -434.4 | -362.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-07 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.44 | 0.00 | 1.37 | 19.18 | 226.75 | -25.41 | 59.92 | 0.4702 | -880.0 | -650.5 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 19.26 | 226.38 | -25.78 | 60.07 | 0.4756 | -793.0 | -698.4 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 19.31 | 226.15 | -26.00 | 60.15 | 0.4789 | -774.0 | -698.6 | |
| 0.00 | 1.90 | 0.00 | 1.08 | 20.30 | 225.65 | -26.50 | 58.71 | 0.4917 | -834.0 | -658.0 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 19.42 | 225.81 | -26.34 | 60.22 | 0.4841 | -718.0 | -559.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 20.37 | 225.17 | -26.99 | 58.96 | 0.4985 | -664.0 | -539.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 17.28 | 222.81 | -29.34 | 66.28 | 0.5131 | -680.0 | -536.2 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 23.51 | 215.68 | -36.47 | 59.81 | 0.6329 | 739.0 | 591.5 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 20.76 | 213.60 | -38.56 | 64.85 | 0.6461 | 694.0 | 563.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
