SDO HMI 2011-08-07 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.84 | 107.67 | 22.87 | 58.82 | -16.81 | 242.25 | -9.36 | 158.40 | 0.4218 | -250.6 | -109.0 | |
|
previous
or next observation for the same group /

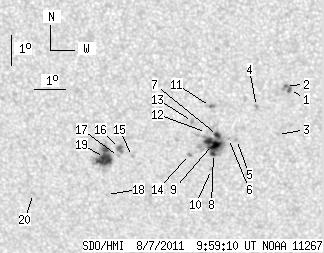

back to the solar disc SDO HMI 2011-08-07 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.99 | 5.70 | 1.06 | 3.04 | -14.89 | 246.11 | -5.50 | 165.55 | 0.3725 | 915.6 | 876.5 | |
| 1.08 | -1.00 | 0.58 | -1.00 | -14.76 | 245.99 | -5.62 | 165.15 | 0.3710 | 985.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -16.37 | 245.69 | -5.92 | 165.52 | 0.3973 | 657.0 | 492.5 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -15.46 | 245.05 | -6.56 | 163.36 | 0.3859 | 950.0 | 607.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -16.55 | 244.37 | -7.23 | 162.63 | 0.4059 | -930.0 | -769.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -16.52 | 244.12 | -7.49 | 162.03 | 0.4067 | -714.0 | -534.3 | |
| 2.80 | 43.85 | 1.52 | 23.82 | -16.43 | 243.77 | -7.84 | 161.18 | 0.4070 | -791.2 | 120.6 | |
| 3.16 | -7.00 | 1.72 | -7.00 | -17.03 | 243.62 | -7.99 | 161.32 | 0.4168 | -688.6 | 999999 | |
| 11.57 | -7.00 | 6.29 | -7.00 | -16.73 | 243.60 | -8.01 | 161.04 | 0.4124 | 963.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -17.56 | 243.53 | -8.08 | 161.56 | 0.4252 | -778.0 | -597.5 | |
| 0.99 | 3.44 | 0.54 | 1.85 | -15.48 | 243.58 | -8.02 | 159.94 | 0.3937 | 972.2 | 705.3 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -16.34 | 243.42 | -8.18 | 160.32 | 0.4074 | -24.0 | -41.7 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -15.98 | 242.99 | -8.62 | 159.05 | 0.4045 | 1118.0 | 894.2 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -17.07 | 242.84 | -8.76 | 159.70 | 0.4215 | -870.0 | -755.7 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -17.17 | 241.00 | -10.61 | 155.98 | 0.4340 | -689.0 | -549.4 | |
| 3.25 | 4.52 | 1.79 | 2.48 | -16.92 | 240.59 | -11.01 | 154.92 | 0.4330 | -926.6 | -856.9 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -17.18 | 240.54 | -11.06 | 155.09 | 0.4371 | -694.0 | -618.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -18.46 | 240.07 | -11.54 | 155.43 | 0.4581 | -459.0 | -379.0 | |
| 17.00 | 35.71 | 9.37 | 19.70 | -17.23 | 240.08 | -11.52 | 154.24 | 0.4407 | -1020.8 | -528.4 | |
| 0.00 | 1.90 | 0.00 | 1.07 | -18.49 | 237.67 | -13.94 | 151.14 | 0.4752 | -823.0 | -588.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
