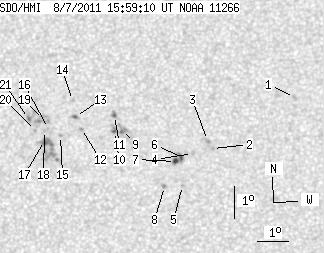

SDO HMI 2011-08-07 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.66 | 78.21 | 5.96 | 40.04 | 19.24 | 242.17 | -6.13 | 23.54 | 0.2510 | -77.7 | 234.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-07 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.06 | 20.44 | 248.61 | 0.32 | 358.80 | 0.2473 | -782.0 | -624.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 18.84 | 245.97 | -2.32 | 9.92 | 0.2234 | -865.0 | -732.0 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 19.09 | 245.81 | -2.49 | 10.40 | 0.2281 | -742.0 | -673.8 | |
| 0.00 | 1.99 | 0.00 | 1.01 | 18.68 | 245.33 | -2.96 | 12.74 | 0.2229 | -794.0 | -581.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 17.69 | 245.03 | -3.26 | 15.21 | 0.2076 | -800.0 | -597.1 | |
| 1.81 | 8.85 | 0.92 | 4.50 | 18.56 | 244.98 | -3.31 | 14.33 | 0.2222 | -1001.6 | -840.0 | |
| 2.89 | -6.00 | 1.47 | -6.00 | 18.43 | 244.79 | -3.50 | 15.27 | 0.2209 | -964.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 17.65 | 244.46 | -3.84 | 17.78 | 0.2098 | -985.0 | -840.9 | |
| 0.00 | 6.50 | 0.00 | 3.32 | 19.42 | 243.06 | -5.24 | 20.58 | 0.2459 | -843.0 | -754.6 | |
| 1.26 | 3.88 | 0.65 | 1.99 | 19.35 | 242.80 | -5.49 | 21.60 | 0.2464 | -779.6 | -642.7 | |
| 1.54 | 3.16 | 0.79 | 1.62 | 19.85 | 242.78 | -5.51 | 20.89 | 0.2544 | -747.9 | -631.1 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 19.43 | 241.73 | -6.56 | 25.14 | 0.2549 | 946.0 | 791.5 | |
| 1.54 | 3.34 | 0.79 | 1.72 | 19.80 | 241.52 | -6.77 | 25.18 | 0.2620 | 878.8 | 730.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 20.30 | 241.40 | -6.89 | 24.72 | 0.2704 | 764.0 | 575.7 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 19.21 | 241.06 | -7.24 | 27.76 | 0.2565 | 933.0 | 701.7 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 19.42 | 240.66 | -7.64 | 28.61 | 0.2628 | 736.0 | 633.2 | |
| 1.36 | 20.87 | 0.69 | 10.68 | 19.04 | 240.55 | -7.75 | 29.71 | 0.2583 | 962.8 | 932.3 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 19.35 | 240.53 | -7.76 | 29.13 | 0.2629 | 914.0 | 654.6 | |
| 0.00 | 9.21 | 0.00 | 4.74 | 19.70 | 240.48 | -7.81 | 28.62 | 0.2683 | 693.0 | 696.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 19.35 | 240.24 | -8.05 | 30.04 | 0.2653 | 830.0 | 677.2 | |
| 1.26 | 6.23 | 0.65 | 3.21 | 19.72 | 239.99 | -8.30 | 30.04 | 0.2727 | 802.4 | 647.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
