SDO HMI 2011-08-07 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.91 | 76.50 | 7.11 | 39.11 | 19.19 | 242.09 | -5.65 | 22.00 | 0.2470 | -96.3 | 163.0 | |
|
previous
or next observation for the same group /

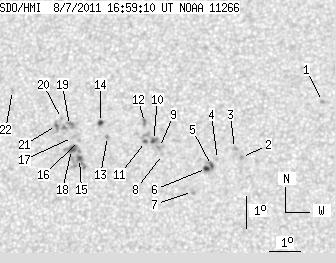

back to the solar disc SDO HMI 2011-08-07 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.92 | 20.54 | 248.61 | 0.87 | 356.72 | 0.2492 | -925.0 | -688.0 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 18.78 | 246.00 | -1.74 | 7.51 | 0.2209 | -929.0 | -786.4 | |
| 0.00 | 2.26 | 0.00 | 1.15 | 19.06 | 245.77 | -1.97 | 8.29 | 0.2261 | -806.0 | -634.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 18.72 | 245.23 | -2.51 | 10.82 | 0.2219 | -825.0 | -614.6 | |
| 1.08 | 5.96 | 0.55 | 3.03 | 18.53 | 245.04 | -2.70 | 11.80 | 0.2194 | -1097.0 | -909.5 | |
| 2.26 | -5.00 | 1.15 | -5.00 | 18.44 | 244.88 | -2.86 | 12.57 | 0.2184 | -1059.2 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.33 | 17.72 | 244.45 | -3.29 | 15.31 | 0.2083 | -899.0 | -739.9 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 18.86 | 243.46 | -4.28 | 17.83 | 0.2317 | -734.0 | -529.4 | |
| 0.00 | 2.62 | 0.00 | 1.34 | 19.08 | 243.36 | -4.38 | 17.92 | 0.2358 | -1071.0 | -803.6 | |
| 1.90 | 10.39 | 0.97 | 5.30 | 19.30 | 243.16 | -4.58 | 18.38 | 0.2403 | -973.0 | -684.9 | |
| 0.72 | -10.00 | 0.37 | -10.00 | 19.26 | 242.90 | -4.84 | 19.38 | 0.2412 | -824.5 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.25 | 19.86 | 242.85 | -4.89 | 18.72 | 0.2509 | -1029.0 | -773.1 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 19.41 | 241.66 | -6.07 | 23.54 | 0.2511 | 958.0 | 853.3 | |
| 2.17 | 2.89 | 1.11 | 1.48 | 19.84 | 241.42 | -6.32 | 23.63 | 0.2594 | 863.7 | 744.5 | |
| 1.45 | 22.76 | 0.74 | 11.64 | 18.71 | 240.79 | -6.95 | 27.80 | 0.2470 | 1121.1 | 876.9 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 19.27 | 240.76 | -6.98 | 26.80 | 0.2555 | 814.0 | 619.6 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 19.36 | 240.53 | -7.21 | 27.37 | 0.2586 | 1009.0 | 669.9 | |
| 3.16 | -15.00 | 1.62 | -15.00 | 18.99 | 240.52 | -7.22 | 28.15 | 0.2532 | 1088.3 | 999999 | |
| 0.00 | 7.59 | 0.00 | 3.90 | 19.74 | 240.42 | -7.32 | 27.05 | 0.2650 | 827.0 | 786.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 19.95 | 240.15 | -7.59 | 27.49 | 0.2703 | 605.0 | 482.5 | |
| 1.17 | 3.79 | 0.60 | 1.95 | 19.73 | 239.99 | -7.75 | 28.36 | 0.2682 | 816.2 | 696.3 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 20.81 | 238.49 | -9.25 | 30.64 | 0.2960 | 729.0 | 592.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
