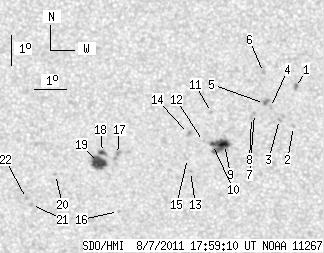

SDO HMI 2011-08-07 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.31 | 71.07 | 12.65 | 38.41 | -16.72 | 242.48 | -4.70 | 168.86 | 0.4001 | -80.7 | 71.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-07 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.26 | 0.00 | 1.20 | -14.78 | 246.30 | -0.88 | 177.62 | 0.3599 | 1048.0 | 940.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -16.06 | 246.23 | -0.95 | 177.59 | 0.3807 | 725.0 | 528.7 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -15.83 | 245.79 | -1.39 | 176.43 | 0.3773 | 857.0 | 715.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -15.43 | 245.51 | -1.67 | 175.63 | 0.3713 | 753.0 | 666.4 | |
| 1.08 | 3.07 | 0.58 | 1.64 | -15.30 | 245.32 | -1.86 | 175.11 | 0.3694 | 923.8 | 930.0 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -14.29 | 245.30 | -1.88 | 174.80 | 0.3530 | 817.0 | 624.1 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -15.63 | 245.00 | -2.18 | 174.37 | 0.3752 | 900.0 | 702.5 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -15.76 | 244.91 | -2.28 | 174.16 | 0.3775 | 773.0 | 610.6 | |
| 4.61 | 22.13 | 2.48 | 11.92 | -16.66 | 244.04 | -3.14 | 172.29 | 0.3935 | 908.6 | 129.8 | |
| 1.63 | -9.00 | 0.88 | -9.00 | -16.66 | 243.66 | -3.53 | 171.37 | 0.3944 | 744.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -15.61 | 243.65 | -3.54 | 170.90 | 0.3776 | 903.0 | 699.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -16.56 | 243.37 | -3.81 | 170.65 | 0.3935 | 723.0 | 526.9 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -17.56 | 242.94 | -4.25 | 170.05 | 0.4105 | -814.0 | -634.1 | |
| 0.00 | 2.17 | 0.00 | 1.17 | -16.30 | 242.90 | -4.28 | 169.39 | 0.3907 | 888.0 | 695.4 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -17.13 | 242.85 | -4.33 | 169.66 | 0.4039 | -703.0 | -477.8 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -18.92 | 240.58 | -6.60 | 165.60 | 0.4394 | -792.0 | -647.5 | |
| 0.00 | 3.88 | 0.00 | 2.11 | -17.02 | 240.62 | -6.56 | 164.48 | 0.4102 | -1058.0 | -841.3 | |
| 2.26 | 20.05 | 1.23 | 10.92 | -16.96 | 240.14 | -7.04 | 163.36 | 0.4114 | -1035.3 | -719.9 | |
| 13.73 | -18.00 | 7.48 | -18.00 | -17.29 | 240.00 | -7.18 | 163.29 | 0.4171 | -962.6 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -17.71 | 238.60 | -8.59 | 160.62 | 0.4303 | -707.0 | -496.2 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -18.73 | 237.77 | -9.42 | 159.76 | 0.4497 | -779.0 | -557.2 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -18.53 | 237.62 | -9.57 | 159.29 | 0.4476 | -896.0 | -705.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
