SDO HMI 2011-08-07 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.95 | 0.00 | 10.19 | 19.79 | 221.39 | -25.79 | 58.48 | 0.4779 | -143.6 | -201.8 | |
|
previous
or next observation for the same group /

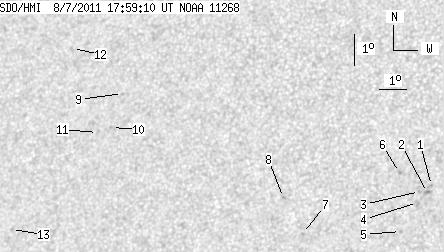

back to the solar disc SDO HMI 2011-08-07 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.49 | 19.56 | 226.48 | -20.71 | 54.50 | 0.4110 | -734.0 | -615.8 | |
| 0.00 | 2.71 | 0.00 | 1.47 | 19.34 | 226.37 | -20.81 | 55.09 | 0.4106 | -882.0 | -779.9 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 19.36 | 226.09 | -21.09 | 55.37 | 0.4144 | -1000.0 | -767.5 | |
| 0.00 | 2.35 | 0.00 | 1.28 | 19.01 | 226.07 | -21.12 | 56.13 | 0.4120 | -892.0 | -683.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 18.09 | 225.60 | -21.58 | 58.62 | 0.4113 | -771.0 | -541.2 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 19.92 | 225.32 | -21.87 | 55.07 | 0.4289 | -792.0 | -655.0 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 17.89 | 222.22 | -24.96 | 62.15 | 0.4561 | -723.0 | -527.5 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 18.98 | 221.37 | -25.81 | 60.67 | 0.4742 | 943.0 | 685.7 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 21.92 | 214.77 | -32.42 | 60.05 | 0.5761 | 625.0 | 494.8 | |
| 0.00 | 1.26 | 0.00 | 0.76 | 20.84 | 214.61 | -32.57 | 61.91 | 0.5725 | 668.0 | 573.4 | |
| 0.00 | 1.26 | 0.00 | 0.77 | 20.65 | 214.12 | -33.07 | 62.49 | 0.5778 | 520.0 | 372.4 | |
| 0.00 | 1.35 | 0.00 | 0.85 | 23.23 | 212.43 | -34.76 | 59.35 | 0.6112 | 496.0 | 469.0 | |
| 0.00 | 0.45 | 0.00 | 0.28 | 17.45 | 211.52 | -35.67 | 68.92 | 0.5984 | 675.0 | 581.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
