SDO HMI 2011-08-07 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.98 | 86.16 | 9.66 | 43.87 | 19.07 | 242.42 | -2.55 | 10.22 | 0.2302 | 92.2 | -40.5 | |
|
previous
or next observation for the same group /

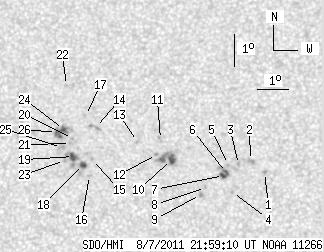

back to the solar disc SDO HMI 2011-08-07 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.92 | 18.53 | 246.60 | 1.63 | 352.79 | 0.2159 | -973.0 | -746.2 | |
| 0.00 | 2.98 | 0.00 | 1.51 | 18.90 | 246.15 | 1.19 | 354.91 | 0.2215 | -890.0 | -739.7 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 18.78 | 245.77 | 0.80 | 356.53 | 0.2189 | -960.0 | -748.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 17.91 | 245.57 | 0.60 | 357.17 | 0.2038 | -887.0 | -648.6 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 18.78 | 245.45 | 0.48 | 357.92 | 0.2186 | -688.0 | -574.2 | |
| 1.72 | 9.03 | 0.87 | 4.58 | 18.53 | 245.38 | 0.41 | 358.16 | 0.2143 | -1127.8 | -859.8 | |
| 1.63 | -6.00 | 0.82 | -6.00 | 18.44 | 245.29 | 0.32 | 358.58 | 0.2127 | -1253.8 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 18.07 | 244.71 | -0.26 | 1.20 | 0.2063 | -855.0 | -665.0 | |
| 0.00 | 2.35 | 0.00 | 1.19 | 17.85 | 244.55 | -0.42 | 1.97 | 0.2026 | -985.0 | -801.7 | |
| 3.34 | 15.54 | 1.70 | 7.89 | 18.94 | 243.62 | -1.35 | 5.79 | 0.2223 | -1170.4 | -854.4 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 19.56 | 243.26 | -1.71 | 6.96 | 0.2335 | -605.0 | -597.4 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 19.09 | 243.13 | -1.84 | 7.74 | 0.2259 | -812.0 | -627.9 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 19.49 | 242.52 | -2.45 | 9.96 | 0.2343 | -225.0 | -249.8 | |
| 0.00 | 4.25 | 0.00 | 2.17 | 19.92 | 241.15 | -3.82 | 14.80 | 0.2463 | 965.0 | 679.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 18.92 | 241.08 | -3.89 | 16.26 | 0.2303 | 811.0 | 671.0 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 18.43 | 240.99 | -3.98 | 17.27 | 0.2226 | 936.0 | 692.4 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 20.30 | 240.82 | -4.15 | 15.59 | 0.2539 | 777.0 | 606.6 | |
| 3.43 | 14.81 | 1.75 | 7.54 | 18.77 | 240.79 | -4.18 | 17.60 | 0.2292 | 1084.2 | 819.8 | |
| 4.61 | -18.00 | 2.35 | -18.00 | 19.01 | 240.46 | -4.51 | 18.52 | 0.2349 | 1116.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 19.57 | 240.41 | -4.55 | 17.93 | 0.2442 | 961.0 | 764.4 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 19.42 | 240.35 | -4.62 | 18.36 | 0.2420 | 978.0 | 778.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 21.23 | 240.17 | -4.80 | 16.74 | 0.2721 | 802.0 | 636.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 18.89 | 240.18 | -4.79 | 19.80 | 0.2345 | 866.0 | 670.5 | |
| 2.35 | 12.55 | 1.20 | 6.42 | 19.85 | 240.11 | -4.85 | 18.63 | 0.2502 | 926.4 | 836.5 | |
| 0.00 | 3.88 | 0.00 | 1.98 | 19.29 | 240.07 | -4.90 | 19.60 | 0.2415 | 960.0 | 670.2 | |
| 1.90 | -24.00 | 0.97 | -24.00 | 19.76 | 239.89 | -5.08 | 19.56 | 0.2499 | 857.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
