SDO HMI 2011-08-07 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.18 | 89.26 | 14.34 | 45.41 | 19.06 | 242.36 | -1.51 | 6.01 | 0.2273 | 12.9 | -26.7 | |
|
previous
or next observation for the same group /

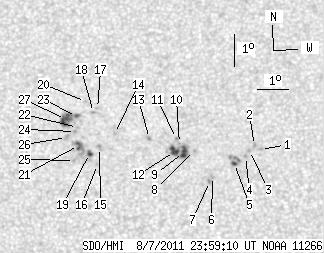

back to the solar disc SDO HMI 2011-08-07 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.78 | 18.88 | 246.24 | 2.37 | 349.87 | 0.2236 | -852.0 | -698.2 | |
| 0.00 | 2.26 | 0.00 | 1.15 | 19.01 | 246.05 | 2.18 | 350.77 | 0.2251 | -987.0 | -745.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 18.85 | 245.88 | 2.02 | 351.33 | 0.2221 | -956.0 | -728.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 18.67 | 245.75 | 1.89 | 351.76 | 0.2186 | -882.0 | -743.9 | |
| 1.63 | 9.03 | 0.82 | 4.58 | 18.45 | 245.40 | 1.53 | 353.17 | 0.2142 | -1005.9 | -837.4 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 18.05 | 244.69 | 0.83 | 356.17 | 0.2062 | -811.0 | -691.7 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 17.89 | 244.59 | 0.73 | 356.57 | 0.2034 | -1069.0 | -880.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 18.86 | 244.12 | 0.25 | 358.91 | 0.2196 | -791.0 | -681.1 | |
| 5.42 | 19.60 | 2.75 | 9.95 | 18.79 | 243.76 | -0.10 | 0.44 | 0.2185 | -1142.1 | -743.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 19.07 | 243.63 | -0.23 | 0.98 | 0.2233 | -620.0 | -556.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 19.23 | 243.54 | -0.33 | 1.37 | 0.2260 | -738.0 | -590.7 | |
| 5.42 | -9.00 | 2.75 | -9.00 | 18.83 | 243.47 | -0.39 | 1.70 | 0.2191 | -994.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 19.23 | 242.67 | -1.20 | 5.01 | 0.2268 | -949.0 | -688.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 19.38 | 241.54 | -2.33 | 9.55 | 0.2318 | -691.0 | -439.2 | |
| 0.00 | 2.89 | 0.00 | 1.47 | 18.94 | 241.06 | -2.80 | 11.86 | 0.2260 | 841.0 | 774.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 18.41 | 241.01 | -2.86 | 12.63 | 0.2174 | 834.0 | 643.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 20.16 | 240.98 | -2.89 | 11.11 | 0.2466 | 702.0 | 492.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 20.03 | 240.85 | -3.02 | 11.70 | 0.2449 | 937.0 | 674.6 | |
| 2.35 | 2.98 | 1.19 | 1.52 | 18.75 | 240.75 | -3.12 | 13.36 | 0.2240 | 1079.6 | 914.7 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 20.38 | 240.58 | -3.28 | 12.38 | 0.2515 | 850.0 | 637.2 | |
| 3.88 | 10.12 | 1.98 | 5.15 | 19.00 | 240.39 | -3.48 | 14.54 | 0.2296 | 1071.4 | 911.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 19.56 | 240.34 | -3.52 | 14.09 | 0.2390 | 777.0 | 631.2 | |
| 0.81 | 16.08 | 0.42 | 8.21 | 19.91 | 240.30 | -3.56 | 13.87 | 0.2448 | 889.4 | 902.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 19.44 | 240.28 | -3.58 | 14.46 | 0.2372 | 1096.0 | 929.6 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 18.53 | 240.27 | -3.60 | 15.59 | 0.2224 | 791.0 | 679.0 | |
| 0.00 | 3.07 | 0.00 | 1.57 | 19.25 | 239.99 | -3.87 | 15.78 | 0.2354 | 797.0 | 722.1 | |
| 8.67 | -23.00 | 4.43 | -23.00 | 19.81 | 239.95 | -3.92 | 15.29 | 0.2447 | 949.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
