SDO HMI 2011-08-07 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.41 | 0.00 | 9.95 | 19.54 | 224.12 | -19.75 | 53.13 | 0.3979 | -449.0 | -559.3 | |
|
previous
or next observation for the same group /

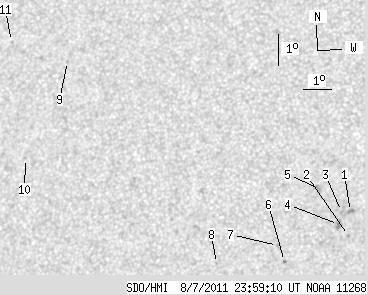

back to the solar disc SDO HMI 2011-08-07 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.16 | 0.00 | 1.68 | 19.48 | 226.31 | -17.56 | 50.55 | 0.3699 | -884.0 | -801.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 18.73 | 226.32 | -17.54 | 52.22 | 0.3627 | -883.0 | -684.6 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 19.47 | 226.00 | -17.86 | 51.02 | 0.3736 | -983.0 | -824.8 | |
| 0.00 | 4.43 | 0.00 | 2.36 | 19.07 | 225.95 | -17.92 | 52.01 | 0.3705 | -948.0 | -730.4 | |
| 0.00 | 3.25 | 0.00 | 1.75 | 20.17 | 225.14 | -18.73 | 50.75 | 0.3908 | -837.0 | -729.9 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 17.86 | 224.26 | -19.61 | 56.99 | 0.3825 | -813.0 | -633.1 | |
| 0.00 | 1.72 | 0.00 | 0.92 | 18.34 | 223.96 | -19.90 | 56.24 | 0.3903 | -755.0 | -506.9 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 17.71 | 221.95 | -21.91 | 59.86 | 0.4128 | -695.0 | -532.8 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 23.80 | 215.50 | -28.37 | 54.18 | 0.5382 | 725.0 | 566.7 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 20.67 | 214.63 | -29.24 | 60.15 | 0.5289 | 584.0 | 550.1 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 24.32 | 213.22 | -30.64 | 55.07 | 0.5687 | 550.0 | 460.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
