SDO HMI 2011-08-08 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.68 | 44.19 | 11.67 | 23.74 | -16.43 | 242.78 | 0.01 | 180.27 | 0.3893 | -133.8 | 90.5 | |
|
previous
or next observation for the same group /

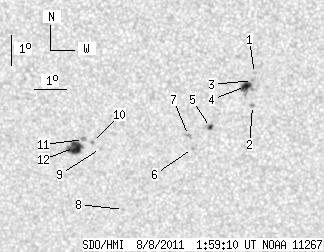

back to the solar disc SDO HMI 2011-08-08 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.72 | -14.81 | 245.71 | 2.95 | 187.88 | 0.3640 | 934.0 | 621.1 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -15.85 | 245.66 | 2.90 | 187.37 | 0.3808 | 828.0 | 639.9 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -15.04 | 245.65 | 2.89 | 187.64 | 0.3675 | 942.0 | 718.2 | |
| 6.32 | 11.75 | 3.37 | 6.26 | -15.23 | 245.43 | 2.67 | 187.00 | 0.3702 | 1062.5 | 724.2 | |
| 1.99 | 3.16 | 1.07 | 1.70 | -16.57 | 244.34 | 1.58 | 183.89 | 0.3902 | 870.0 | 779.0 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -17.27 | 243.77 | 1.01 | 182.42 | 0.4009 | 781.0 | 589.8 | |
| 0.00 | 3.07 | 0.00 | 1.65 | -16.83 | 243.65 | 0.88 | 182.15 | 0.3939 | -844.0 | -590.5 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -19.31 | 241.56 | -1.20 | 177.37 | 0.4335 | -732.0 | -609.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -17.27 | 240.85 | -1.92 | 175.41 | 0.4018 | -301.0 | -338.3 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -17.07 | 240.59 | -2.17 | 174.77 | 0.3990 | -872.0 | -630.9 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -16.97 | 240.31 | -2.46 | 174.06 | 0.3979 | -1024.0 | -952.5 | |
| 13.37 | 15.45 | 7.23 | 8.36 | -17.24 | 240.02 | -2.75 | 173.44 | 0.4026 | -966.6 | -698.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
