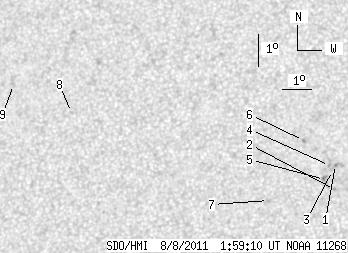

SDO HMI 2011-08-08 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.45 | 0.00 | 7.82 | 19.66 | 223.32 | -19.45 | 52.19 | 0.3949 | -481.0 | -463.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-08 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.62 | 19.53 | 226.21 | -16.56 | 48.93 | 0.3578 | -1046.0 | -922.7 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 18.75 | 226.25 | -16.51 | 50.63 | 0.3496 | -947.0 | -827.2 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 19.34 | 226.13 | -16.64 | 49.48 | 0.3569 | -287.0 | -491.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 19.49 | 226.01 | -16.76 | 49.32 | 0.3599 | -952.0 | -848.5 | |
| 0.00 | 3.89 | 0.00 | 2.06 | 19.05 | 225.89 | -16.88 | 50.51 | 0.3571 | -888.0 | -734.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 20.24 | 225.04 | -17.72 | 49.16 | 0.3791 | -858.0 | -786.0 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 18.34 | 224.08 | -18.69 | 54.74 | 0.3740 | -802.0 | -639.3 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 20.81 | 216.84 | -25.93 | 57.37 | 0.4873 | 748.0 | 563.6 | |
| 0.00 | 1.90 | 0.00 | 1.10 | 21.59 | 214.55 | -28.21 | 57.82 | 0.5214 | 703.0 | 437.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
