SDO HMI 2011-08-08 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.74 | 121.94 | 29.90 | 62.06 | 19.28 | 242.01 | 0.89 | 356.02 | 0.2297 | 137.7 | 28.3 | |
|
previous
or next observation for the same group /

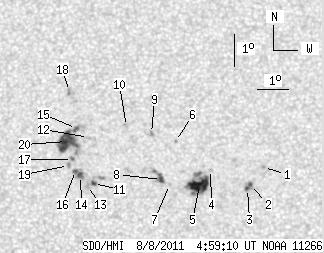

back to the solar disc SDO HMI 2011-08-08 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.74 | 19.17 | 246.23 | 5.11 | 339.41 | 0.2404 | -794.0 | -650.0 | |
| 1.72 | 6.69 | 0.87 | 3.40 | 18.64 | 245.80 | 4.68 | 340.23 | 0.2295 | -1024.0 | -875.0 | |
| 1.17 | -2.00 | 0.60 | -2.00 | 18.52 | 245.70 | 4.58 | 340.43 | 0.2269 | -1144.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 19.12 | 244.52 | 3.40 | 345.89 | 0.2309 | -760.0 | -552.1 | |
| 18.17 | 34.25 | 9.23 | 17.40 | 18.62 | 244.16 | 3.04 | 346.82 | 0.2212 | -1207.1 | -734.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 20.00 | 243.41 | 2.29 | 351.04 | 0.2418 | -625.0 | -510.3 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 18.66 | 243.20 | 2.07 | 350.93 | 0.2187 | -801.0 | -662.9 | |
| 2.98 | 10.03 | 1.51 | 5.10 | 18.82 | 242.94 | 1.82 | 352.14 | 0.2207 | -988.0 | -576.1 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 20.25 | 242.63 | 1.51 | 354.16 | 0.2444 | 949.0 | 802.9 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 20.48 | 241.82 | 0.70 | 357.32 | 0.2471 | 232.0 | 418.2 | |
| 2.26 | 6.78 | 1.15 | 3.44 | 18.69 | 240.76 | -0.36 | 1.60 | 0.2166 | 1001.8 | 713.7 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 20.13 | 240.59 | -0.53 | 2.07 | 0.2411 | 633.0 | 526.9 | |
| 0.00 | 2.62 | 0.00 | 1.33 | 18.63 | 240.56 | -0.56 | 2.46 | 0.2156 | 1059.0 | 899.0 | |
| 3.07 | 8.50 | 1.56 | 4.32 | 18.94 | 240.34 | -0.78 | 3.36 | 0.2211 | 1086.4 | 883.1 | |
| 2.17 | 36.42 | 1.11 | 18.58 | 20.41 | 240.20 | -0.92 | 3.52 | 0.2462 | 969.1 | 741.3 | |
| 1.90 | -14.00 | 0.96 | -14.00 | 19.10 | 240.18 | -0.94 | 4.00 | 0.2239 | 898.4 | 999999 | |
| 1.17 | 1.72 | 0.60 | 0.87 | 19.44 | 240.08 | -1.04 | 4.30 | 0.2299 | 901.6 | 975.5 | |
| 0.00 | 2.80 | 0.00 | 1.44 | 21.58 | 239.97 | -1.16 | 4.06 | 0.2662 | 829.0 | 701.6 | |
| 0.00 | 2.26 | 0.00 | 1.15 | 19.25 | 239.95 | -1.17 | 4.90 | 0.2269 | 1038.0 | 883.6 | |
| 24.13 | -15.00 | 12.31 | -15.00 | 20.00 | 239.88 | -1.24 | 4.89 | 0.2397 | 1025.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
