SDO HMI 2011-08-08 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.30 | 148.79 | 30.69 | 75.76 | 19.39 | 241.87 | 1.30 | 354.37 | 0.2322 | 127.5 | 147.6 | |
|
previous
or next observation for the same group /

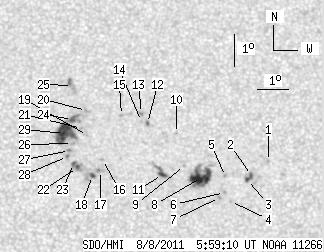

back to the solar disc SDO HMI 2011-08-08 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.60 | 19.10 | 246.43 | 5.85 | 336.63 | 0.2440 | -796.0 | -531.7 | |
| 1.18 | 4.52 | 0.60 | 2.30 | 18.67 | 245.86 | 5.29 | 337.94 | 0.2336 | -1076.5 | -951.0 | |
| 0.72 | -2.00 | 0.37 | -2.00 | 18.55 | 245.73 | 5.16 | 338.23 | 0.2308 | -1171.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 17.87 | 245.16 | 4.59 | 339.31 | 0.2166 | -857.0 | -581.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 18.65 | 245.02 | 4.45 | 341.12 | 0.2282 | -898.0 | -812.2 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 18.15 | 244.98 | 4.41 | 340.53 | 0.2200 | -941.0 | -743.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 18.00 | 244.82 | 4.24 | 340.96 | 0.2166 | -971.0 | -738.6 | |
| 19.98 | 38.05 | 10.15 | 19.34 | 18.62 | 244.25 | 3.68 | 344.17 | 0.2239 | -1145.9 | -666.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 19.00 | 243.71 | 3.14 | 346.80 | 0.2278 | -752.0 | -490.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 20.00 | 243.47 | 2.90 | 348.69 | 0.2436 | -669.0 | -477.5 | |
| 2.80 | 8.13 | 1.42 | 4.13 | 18.72 | 243.00 | 2.43 | 349.48 | 0.2207 | -1063.9 | -745.9 | |
| 1.18 | 1.99 | 0.60 | 1.02 | 20.32 | 242.54 | 1.97 | 352.46 | 0.2463 | 820.6 | 675.3 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 20.63 | 242.35 | 1.77 | 353.35 | 0.2512 | 994.0 | 794.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 20.38 | 242.34 | 1.77 | 353.23 | 0.2470 | 889.0 | 614.2 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 20.57 | 241.70 | 1.12 | 355.75 | 0.2491 | 783.0 | 609.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 19.19 | 241.08 | 0.50 | 357.88 | 0.2252 | -593.0 | -380.8 | |
| 0.00 | 3.43 | 0.00 | 1.74 | 18.85 | 241.01 | 0.44 | 358.10 | 0.2193 | 915.0 | 685.2 | |
| 2.26 | 19.07 | 1.15 | 9.68 | 18.70 | 240.75 | 0.18 | 359.21 | 0.2165 | 1093.3 | 808.8 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 19.94 | 240.59 | 0.02 | 359.92 | 0.2378 | 641.0 | 455.1 | |
| 0.00 | 2.71 | 0.00 | 1.39 | 20.73 | 240.56 | -0.01 | 0.05 | 0.2511 | 835.0 | 580.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 20.16 | 240.40 | -0.17 | 0.68 | 0.2415 | 718.0 | 536.0 | |
| 1.54 | -18.00 | 0.78 | -18.00 | 18.94 | 240.27 | -0.30 | 1.30 | 0.2208 | 1128.7 | 999999 | |
| 1.72 | -18.00 | 0.87 | -18.00 | 19.07 | 240.14 | -0.43 | 1.83 | 0.2230 | 960.9 | 999999 | |
| 3.25 | 42.03 | 1.66 | 21.45 | 20.45 | 240.11 | -0.47 | 1.78 | 0.2464 | 991.2 | 639.7 | |
| 0.00 | 7.59 | 0.00 | 3.90 | 21.51 | 240.10 | -0.47 | 1.66 | 0.2645 | 662.0 | 686.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 19.69 | 240.11 | -0.46 | 1.88 | 0.2336 | 1084.0 | 908.4 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 19.48 | 240.01 | -0.56 | 2.31 | 0.2300 | 1073.0 | 812.7 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 19.29 | 239.95 | -0.62 | 2.61 | 0.2268 | 1025.0 | 874.0 | |
| 25.67 | -24.00 | 13.09 | -24.00 | 20.01 | 239.85 | -0.72 | 2.86 | 0.2391 | 1039.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
