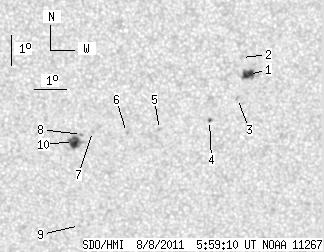

SDO HMI 2011-08-08 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.81 | 33.55 | 9.02 | 18.04 | -16.37 | 242.61 | 2.04 | 185.32 | 0.3902 | 5.7 | -80.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-08 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.04 | 9.94 | 4.29 | 5.31 | -15.01 | 245.64 | 5.06 | 193.24 | 0.3738 | 1024.9 | 731.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -14.46 | 245.40 | 4.83 | 192.99 | 0.3641 | 762.0 | 636.3 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -15.80 | 245.31 | 4.73 | 191.95 | 0.3850 | 854.0 | 663.6 | |
| 0.45 | 1.18 | 0.24 | 0.63 | -16.51 | 244.43 | 3.86 | 189.47 | 0.3937 | 712.2 | 703.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -16.80 | 242.85 | 2.28 | 185.54 | 0.3950 | 900.0 | 630.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -16.90 | 241.80 | 1.23 | 182.98 | 0.3953 | -871.0 | -715.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -16.86 | 240.72 | 0.15 | 180.36 | 0.3942 | -738.0 | -560.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -16.96 | 240.37 | -0.20 | 179.51 | 0.3958 | -986.0 | -849.0 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -20.01 | 240.30 | -0.27 | 179.42 | 0.4443 | -573.0 | -448.0 | |
| 8.32 | 13.11 | 4.49 | 7.08 | -17.19 | 240.12 | -0.46 | 178.90 | 0.3996 | -1008.9 | -677.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
