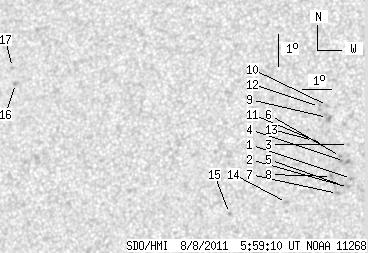

SDO HMI 2011-08-08 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 35.37 | 0.00 | 18.80 | 19.97 | 224.11 | -16.46 | 47.26 | 0.3615 | -640.4 | -541.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-08 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 0.99 | 19.04 | 226.40 | -14.18 | 45.88 | 0.3239 | -945.0 | -728.3 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 18.76 | 226.32 | -14.25 | 46.69 | 0.3218 | -920.0 | -674.7 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 20.10 | 226.20 | -14.37 | 43.86 | 0.3379 | -744.0 | -521.7 | |
| 0.00 | 4.52 | 0.00 | 2.37 | 19.57 | 226.12 | -14.46 | 45.20 | 0.3329 | -696.0 | -856.6 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 18.82 | 226.12 | -14.46 | 46.94 | 0.3248 | -964.0 | -831.3 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 19.72 | 225.97 | -14.61 | 45.14 | 0.3363 | -912.0 | -733.3 | |
| 0.00 | 2.44 | 0.00 | 1.28 | 18.56 | 225.97 | -14.60 | 47.81 | 0.3239 | -852.0 | -666.2 | |
| 0.00 | 2.17 | 0.00 | 1.14 | 19.09 | 225.73 | -14.85 | 47.02 | 0.3324 | -817.0 | -715.5 | |
| 0.00 | 5.15 | 0.00 | 2.73 | 20.93 | 225.41 | -15.16 | 43.55 | 0.3560 | -910.0 | -778.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 21.31 | 225.37 | -15.20 | 42.85 | 0.3607 | -753.0 | -557.9 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 20.08 | 225.36 | -15.21 | 45.44 | 0.3473 | -755.0 | -584.6 | |
| 0.00 | 2.35 | 0.00 | 1.25 | 21.27 | 225.11 | -15.47 | 43.40 | 0.3632 | -464.0 | -507.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 20.20 | 225.02 | -15.56 | 45.81 | 0.3526 | -934.0 | -715.6 | |
| 0.00 | 2.08 | 0.00 | 1.10 | 18.24 | 224.31 | -16.27 | 51.47 | 0.3415 | -818.0 | -579.0 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 17.84 | 222.44 | -18.13 | 55.19 | 0.3624 | -835.0 | -661.5 | |
| 0.00 | 2.26 | 0.00 | 1.29 | 21.60 | 214.41 | -26.16 | 56.14 | 0.4956 | 828.0 | 694.4 | |
| 0.00 | 1.72 | 0.00 | 0.98 | 22.10 | 214.20 | -26.37 | 55.43 | 0.5018 | 604.0 | 464.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
