SDO HMI 2011-08-08 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.08 | 26.77 | 1.09 | 14.14 | 19.77 | 224.02 | -14.91 | 44.24 | 0.3414 | -446.9 | -403.6 | |
|
previous
or next observation for the same group /

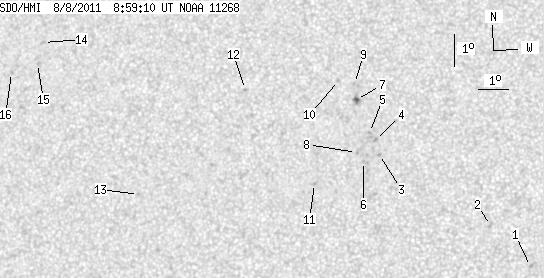

back to the solar disc SDO HMI 2011-08-08 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.69 | 15.73 | 231.44 | -7.49 | 37.14 | 0.2087 | -872.0 | -681.1 | |
| 0.00 | 2.98 | 0.00 | 1.52 | 16.98 | 230.11 | -8.82 | 38.05 | 0.2390 | -840.0 | -619.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 19.11 | 226.37 | -12.56 | 42.41 | 0.3061 | -971.0 | -827.0 | |
| 0.00 | 2.08 | 0.00 | 1.08 | 19.55 | 226.20 | -12.73 | 41.78 | 0.3131 | -941.0 | -765.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 19.79 | 225.98 | -12.95 | 41.69 | 0.3184 | -807.0 | -651.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 18.88 | 225.86 | -13.07 | 44.04 | 0.3093 | -840.0 | -662.7 | |
| 2.08 | 5.42 | 1.09 | 2.85 | 20.81 | 225.46 | -13.47 | 40.58 | 0.3362 | -983.0 | -716.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 19.16 | 225.60 | -13.33 | 43.92 | 0.3153 | -763.0 | -568.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 21.31 | 225.34 | -13.59 | 39.79 | 0.3434 | -721.0 | -574.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 21.40 | 224.80 | -14.13 | 40.70 | 0.3501 | -632.0 | -469.8 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 18.16 | 224.30 | -14.63 | 48.86 | 0.3201 | -885.0 | -589.2 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 21.02 | 221.69 | -17.24 | 46.83 | 0.3810 | -869.0 | -676.6 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 17.63 | 218.45 | -20.48 | 58.56 | 0.3925 | 761.0 | 621.1 | |
| 0.00 | 1.99 | 0.00 | 1.12 | 22.24 | 214.42 | -24.51 | 53.46 | 0.4798 | 656.0 | 551.9 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 21.57 | 214.33 | -24.60 | 54.77 | 0.4759 | 839.0 | 661.0 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 21.25 | 213.45 | -25.48 | 56.18 | 0.4846 | 765.0 | 591.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
