SDO HMI 2011-08-08 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.42 | 183.66 | 43.57 | 93.74 | 19.55 | 241.81 | 3.43 | 346.18 | 0.2412 | 59.6 | 199.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-08 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

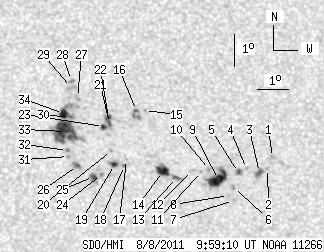

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 1.11 | 19.20 | 246.47 | 8.09 | 329.43 | 0.2626 | -848.0 | -701.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 18.86 | 246.30 | 7.91 | 329.27 | 0.2562 | -802.0 | -628.3 | |
| 3.89 | 6.06 | 1.99 | 3.10 | 18.74 | 246.03 | 7.65 | 329.86 | 0.2522 | -1014.3 | -691.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 18.87 | 245.62 | 7.23 | 331.47 | 0.2506 | -808.0 | -589.6 | |
| 2.08 | 2.71 | 1.06 | 1.39 | 18.74 | 245.35 | 6.97 | 332.11 | 0.2467 | -829.7 | -778.4 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 18.28 | 245.17 | 6.79 | 331.77 | 0.2384 | -977.0 | -739.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.88 | 245.16 | 6.77 | 330.97 | 0.2323 | -781.0 | -660.8 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 18.03 | 245.00 | 6.62 | 331.86 | 0.2334 | -878.0 | -638.8 | |
| 16.90 | 27.29 | 8.62 | 13.92 | 18.53 | 244.70 | 6.32 | 333.95 | 0.2386 | -1231.5 | -654.3 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 18.85 | 244.42 | 6.04 | 335.53 | 0.2413 | -666.0 | -601.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 18.79 | 244.16 | 5.78 | 336.36 | 0.2386 | -843.0 | -647.8 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 18.82 | 243.87 | 5.49 | 337.47 | 0.2372 | -569.0 | -482.4 | |
| 1.72 | 4.43 | 0.87 | 2.25 | 18.61 | 243.35 | 4.96 | 339.07 | 0.2306 | -917.1 | -894.0 | |
| 8.68 | 12.02 | 4.42 | 6.12 | 18.80 | 242.90 | 4.52 | 341.08 | 0.2311 | -1092.5 | -711.4 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 20.71 | 242.37 | 3.99 | 345.42 | 0.2595 | 631.0 | 479.9 | |
| 1.36 | 6.42 | 0.70 | 3.29 | 20.71 | 242.11 | 3.73 | 346.33 | 0.2584 | 755.5 | 870.4 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 19.18 | 241.75 | 3.37 | 346.08 | 0.2318 | -723.0 | -546.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 19.00 | 241.68 | 3.30 | 346.15 | 0.2284 | -882.0 | -687.6 | |
| 2.62 | 4.52 | 1.33 | 2.30 | 19.03 | 241.36 | 2.98 | 347.49 | 0.2277 | -896.2 | -687.7 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 19.47 | 241.27 | 2.89 | 348.26 | 0.2347 | -584.0 | -375.4 | |
| 0.72 | 12.20 | 0.37 | 6.24 | 20.31 | 241.22 | 2.84 | 349.18 | 0.2486 | 1183.1 | 792.5 | |
| 2.17 | -21.00 | 1.11 | -21.00 | 20.50 | 241.19 | 2.81 | 349.43 | 0.2516 | 919.0 | 999999 | |
| 2.08 | -21.00 | 1.06 | -21.00 | 20.22 | 241.03 | 2.64 | 349.84 | 0.2464 | 1024.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 18.72 | 240.94 | 2.56 | 348.94 | 0.2211 | 919.0 | 723.5 | |
| 3.16 | 6.87 | 1.61 | 3.49 | 18.66 | 240.68 | 2.30 | 349.98 | 0.2193 | 1105.7 | 854.0 | |
| 1.54 | 4.07 | 0.78 | 2.07 | 19.00 | 240.17 | 1.79 | 352.39 | 0.2238 | 1043.2 | 1015.9 | |
| 0.00 | 2.26 | 0.00 | 1.16 | 21.13 | 240.19 | 1.81 | 353.45 | 0.2597 | 731.0 | 599.4 | |
| 0.00 | 2.26 | 0.00 | 1.16 | 21.67 | 240.00 | 1.62 | 354.35 | 0.2684 | 868.0 | 721.5 | |
| 0.00 | 3.34 | 0.00 | 1.72 | 21.45 | 240.00 | 1.62 | 354.27 | 0.2647 | 838.0 | 676.8 | |
| 1.36 | 65.80 | 0.69 | 33.60 | 20.51 | 239.96 | 1.58 | 354.02 | 0.2487 | 829.7 | 714.6 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 19.29 | 239.88 | 1.50 | 353.74 | 0.2279 | 1083.0 | 891.5 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 19.47 | 239.85 | 1.47 | 353.96 | 0.2311 | 1049.0 | 825.0 | |
| 31.90 | -30.00 | 16.28 | -30.00 | 20.07 | 239.76 | 1.38 | 354.59 | 0.2410 | 1061.6 | 999999 | |
| 5.24 | -30.00 | 2.68 | -30.00 | 20.63 | 239.73 | 1.35 | 354.92 | 0.2505 | 991.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
