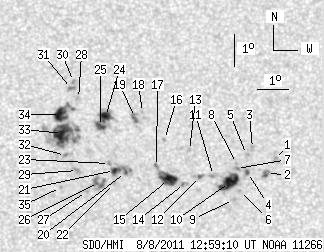

SDO HMI 2011-08-08 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.06 | 244.23 | 47.10 | 124.96 | 19.65 | 241.64 | 4.91 | 340.95 | 0.2497 | 41.9 | 166.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-08 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.79 | 0.00 | 1.96 | 19.26 | 246.52 | 9.79 | 324.68 | 0.2789 | -715.0 | -621.1 | |
| 0.00 | 4.79 | 0.00 | 2.46 | 18.83 | 246.20 | 9.47 | 324.59 | 0.2701 | -1153.0 | -926.1 | |
| 0.00 | 2.89 | 0.00 | 1.49 | 19.61 | 245.79 | 9.06 | 327.45 | 0.2770 | -721.0 | -672.8 | |
| 1.72 | 2.17 | 0.88 | 1.11 | 18.87 | 245.59 | 8.86 | 326.44 | 0.2648 | -878.8 | -888.2 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 19.43 | 245.59 | 8.86 | 327.65 | 0.2725 | -678.0 | -624.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 18.31 | 245.30 | 8.57 | 326.05 | 0.2544 | -887.0 | -697.4 | |
| 0.00 | 2.80 | 0.00 | 1.44 | 19.00 | 245.24 | 8.51 | 327.76 | 0.2634 | -687.0 | -584.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 19.15 | 245.25 | 8.52 | 328.07 | 0.2656 | -717.0 | -539.7 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 18.04 | 245.09 | 8.36 | 326.04 | 0.2487 | -755.0 | -534.8 | |
| 19.06 | 22.50 | 9.77 | 11.52 | 18.57 | 244.99 | 8.26 | 327.58 | 0.2551 | -1183.3 | -719.1 | |
| 0.00 | 3.98 | 0.00 | 2.04 | 18.79 | 244.48 | 7.75 | 329.65 | 0.2538 | -842.0 | -663.1 | |
| 1.26 | 3.89 | 0.65 | 1.99 | 18.77 | 244.03 | 7.30 | 331.07 | 0.2497 | -832.6 | -729.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 19.58 | 243.74 | 7.01 | 333.58 | 0.2595 | -758.0 | -582.4 | |
| 0.00 | 3.07 | 0.00 | 1.57 | 18.55 | 243.53 | 6.80 | 332.29 | 0.2426 | -963.0 | -827.2 | |
| 14.64 | 18.07 | 7.47 | 9.22 | 18.69 | 243.02 | 6.29 | 334.33 | 0.2407 | -1050.4 | -615.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 19.93 | 242.94 | 6.21 | 336.79 | 0.2592 | -784.0 | -500.1 | |
| 0.00 | 2.98 | 0.00 | 1.52 | 19.09 | 242.65 | 5.92 | 336.38 | 0.2443 | -740.0 | -538.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 20.79 | 242.26 | 5.53 | 340.31 | 0.2683 | 671.0 | 513.2 | |
| 0.00 | 5.69 | 0.00 | 2.92 | 20.63 | 242.02 | 5.29 | 340.87 | 0.2646 | 988.0 | 792.1 | |
| 1.08 | 16.26 | 0.55 | 8.29 | 18.92 | 241.64 | 4.91 | 339.76 | 0.2352 | -912.4 | -564.5 | |
| 3.25 | -20.00 | 1.66 | -20.00 | 18.98 | 241.29 | 4.56 | 341.19 | 0.2342 | -862.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 18.58 | 241.28 | 4.55 | 340.63 | 0.2277 | 854.0 | 618.8 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 19.20 | 241.13 | 4.40 | 342.10 | 0.2369 | -814.0 | -571.5 | |
| 8.67 | 24.12 | 4.45 | 12.37 | 20.67 | 241.05 | 4.31 | 344.24 | 0.2603 | 1011.7 | 546.9 | |
| 5.51 | -24.00 | 2.82 | -24.00 | 20.36 | 240.87 | 4.14 | 344.49 | 0.2544 | 1017.3 | 999999 | |
| 0.00 | 11.66 | 0.00 | 5.93 | 18.61 | 240.76 | 4.03 | 342.72 | 0.2255 | 1016.0 | 861.0 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 18.34 | 240.37 | 3.64 | 343.95 | 0.2191 | 913.0 | 732.9 | |
| 0.00 | 2.35 | 0.00 | 1.21 | 21.25 | 240.18 | 3.45 | 347.78 | 0.2661 | 682.0 | 522.3 | |
| 0.00 | 4.34 | 0.00 | 2.21 | 18.99 | 240.10 | 3.37 | 345.88 | 0.2286 | 1112.0 | 836.5 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 21.78 | 240.03 | 3.30 | 348.72 | 0.2744 | 825.0 | 697.1 | |
| 0.00 | 3.34 | 0.00 | 1.72 | 21.56 | 239.96 | 3.23 | 348.79 | 0.2706 | 940.0 | 764.5 | |
| 0.00 | 2.62 | 0.00 | 1.34 | 19.46 | 239.72 | 2.99 | 347.86 | 0.2350 | 977.0 | 809.2 | |
| 25.12 | 85.11 | 12.83 | 43.52 | 20.15 | 239.64 | 2.91 | 348.80 | 0.2461 | 1086.7 | 593.1 | |
| 11.75 | -33.00 | 6.02 | -33.00 | 20.75 | 239.58 | 2.85 | 349.48 | 0.2559 | 966.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 18.47 | 239.54 | 2.81 | 347.61 | 0.2177 | 781.0 | 668.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
