SDO HMI 2011-08-08 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.94 | 27.45 | 4.29 | 14.85 | -15.74 | 244.14 | 7.97 | 199.73 | 0.4007 | 269.9 | 322.2 | |
|
previous
or next observation for the same group /

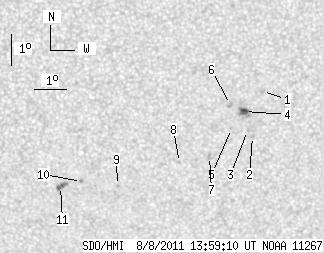

back to the solar disc SDO HMI 2011-08-08 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.97 | -14.15 | 246.57 | 10.39 | 206.76 | 0.3901 | 745.0 | 599.5 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -15.61 | 246.32 | 10.14 | 204.58 | 0.4094 | 419.0 | 402.4 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -15.41 | 246.15 | 9.97 | 204.43 | 0.4054 | 682.0 | 556.6 | |
| 3.97 | 7.23 | 2.14 | 3.90 | -14.79 | 246.02 | 9.85 | 204.82 | 0.3955 | 1064.1 | 803.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -15.34 | 245.63 | 9.46 | 203.38 | 0.4010 | 788.0 | 573.0 | |
| 0.00 | 2.80 | 0.00 | 1.51 | -14.55 | 245.57 | 9.39 | 204.06 | 0.3890 | 854.0 | 788.7 | |
| 0.00 | 2.44 | 0.00 | 1.32 | -16.24 | 244.97 | 8.79 | 201.05 | 0.4103 | 809.0 | 673.1 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -16.42 | 244.02 | 7.84 | 198.79 | 0.4079 | 787.0 | 521.8 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -17.16 | 242.06 | 5.89 | 193.87 | 0.4104 | -822.0 | -740.4 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -17.01 | 240.91 | 4.73 | 191.30 | 0.4041 | -933.0 | -772.2 | |
| 3.97 | 6.32 | 2.15 | 3.42 | -17.17 | 240.24 | 4.07 | 189.68 | 0.4047 | -938.9 | -783.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
