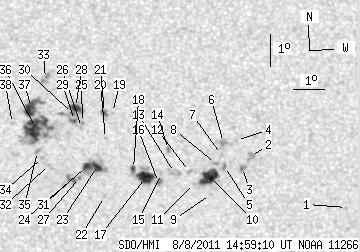

SDO HMI 2011-08-08 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.24 | 248.53 | 53.90 | 127.42 | 19.71 | 241.79 | 6.17 | 336.72 | 0.2584 | 5.0 | 94.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-08 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.61 | 17.55 | 249.62 | 13.99 | 310.79 | 0.3059 | -720.0 | -583.4 | |
| 0.00 | 5.15 | 0.00 | 2.66 | 19.20 | 246.59 | 10.97 | 321.52 | 0.2900 | -815.0 | -760.3 | |
| 0.00 | 3.97 | 0.00 | 2.05 | 18.87 | 246.31 | 10.68 | 321.46 | 0.2827 | -1228.0 | -892.0 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 19.71 | 246.17 | 10.54 | 323.71 | 0.2922 | -630.0 | -478.5 | |
| 0.00 | 3.07 | 0.00 | 1.58 | 18.91 | 245.72 | 10.10 | 323.08 | 0.2773 | -952.0 | -799.2 | |
| 0.00 | 4.97 | 0.00 | 2.57 | 19.66 | 245.74 | 10.11 | 324.69 | 0.2873 | -853.0 | -647.1 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 19.28 | 245.65 | 10.02 | 324.12 | 0.2815 | -731.0 | -616.2 | |
| 0.00 | 2.71 | 0.00 | 1.40 | 19.01 | 245.43 | 9.81 | 324.07 | 0.2757 | -890.0 | -659.6 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 18.05 | 245.22 | 9.59 | 322.42 | 0.2609 | -865.0 | -701.4 | |
| 18.43 | 20.32 | 9.47 | 10.45 | 18.61 | 245.22 | 9.59 | 323.76 | 0.2683 | -1150.1 | -898.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 18.40 | 244.72 | 9.09 | 324.69 | 0.2606 | -857.0 | -591.8 | |
| 0.00 | 1.99 | 0.00 | 1.02 | 18.77 | 244.57 | 8.95 | 325.96 | 0.2643 | -998.0 | -702.0 | |
| 0.00 | 7.23 | 0.00 | 3.71 | 18.75 | 244.09 | 8.46 | 327.36 | 0.2595 | -748.0 | -739.6 | |
| 0.00 | 2.53 | 0.00 | 1.30 | 19.47 | 243.93 | 8.30 | 329.35 | 0.2682 | -803.0 | -621.3 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 18.72 | 243.66 | 8.04 | 328.60 | 0.2553 | -591.0 | -435.4 | |
| 0.36 | 2.62 | 0.18 | 1.34 | 18.45 | 243.55 | 7.93 | 328.34 | 0.2504 | -1170.0 | -966.3 | |
| 14.54 | 24.75 | 7.44 | 12.66 | 18.61 | 243.14 | 7.51 | 330.02 | 0.2492 | -1142.7 | -399.7 | |
| 2.44 | -17.00 | 1.25 | -17.00 | 18.89 | 242.76 | 7.14 | 331.84 | 0.2502 | -700.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 20.65 | 242.16 | 6.53 | 336.88 | 0.2723 | 759.0 | 575.8 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 19.84 | 241.90 | 6.27 | 336.44 | 0.2581 | 416.0 | 329.1 | |
| 2.89 | 4.15 | 1.49 | 2.14 | 20.65 | 241.90 | 6.27 | 337.71 | 0.2707 | 957.0 | 753.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 18.03 | 241.80 | 6.17 | 333.48 | 0.2299 | 821.0 | 570.3 | |
| 5.60 | 24.12 | 2.86 | 12.31 | 18.94 | 241.57 | 5.94 | 336.01 | 0.2420 | -1061.9 | -525.5 | |
| 5.33 | -23.00 | 2.72 | -23.00 | 18.97 | 241.25 | 5.62 | 337.23 | 0.2404 | -993.7 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 20.35 | 241.17 | 5.54 | 339.65 | 0.2614 | 872.0 | 691.1 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 20.19 | 241.13 | 5.50 | 339.55 | 0.2588 | 791.0 | 533.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 18.63 | 241.01 | 5.39 | 337.51 | 0.2336 | 782.0 | 708.2 | |
| 5.78 | 26.47 | 2.97 | 13.59 | 20.82 | 240.95 | 5.33 | 340.99 | 0.2677 | 1030.7 | 713.2 | |
| 1.45 | -28.00 | 0.74 | -28.00 | 20.41 | 240.91 | 5.28 | 340.60 | 0.2610 | 977.9 | 999999 | |
| 1.45 | -28.00 | 0.74 | -28.00 | 20.63 | 240.85 | 5.23 | 341.09 | 0.2642 | 1079.0 | 999999 | |
| 4.25 | 5.51 | 2.16 | 2.80 | 18.57 | 240.75 | 5.13 | 338.39 | 0.2310 | 988.3 | 807.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 19.05 | 240.06 | 4.43 | 341.77 | 0.2345 | 900.0 | 766.5 | |
| 0.00 | 6.68 | 0.00 | 3.45 | 21.74 | 240.00 | 4.38 | 345.15 | 0.2778 | 717.0 | 700.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 19.27 | 239.84 | 4.21 | 342.91 | 0.2369 | 954.0 | 703.4 | |
| 0.00 | 2.26 | 0.00 | 1.15 | 19.45 | 239.68 | 4.05 | 343.74 | 0.2392 | 967.0 | 755.1 | |
| 27.64 | 83.28 | 14.14 | 42.63 | 20.21 | 239.63 | 4.01 | 344.79 | 0.2512 | 1108.1 | 672.1 | |
| 15.08 | -36.00 | 7.74 | -36.00 | 20.83 | 239.52 | 3.89 | 345.86 | 0.2610 | 915.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 20.34 | 238.89 | 3.27 | 347.63 | 0.2504 | 590.0 | 422.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
