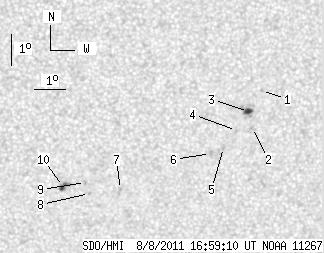

SDO HMI 2011-08-08 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.22 | 26.18 | 4.46 | 14.22 | -15.90 | 243.94 | 9.42 | 202.75 | 0.4116 | 170.0 | 187.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-08 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.68 | -14.11 | 246.51 | 11.99 | 210.23 | 0.4019 | 805.0 | 604.3 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -15.31 | 246.29 | 11.77 | 208.30 | 0.4167 | 770.0 | 623.9 | |
| 4.52 | 8.85 | 2.45 | 4.80 | -14.79 | 246.13 | 11.61 | 208.60 | 0.4082 | 1032.3 | 707.6 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -15.40 | 245.78 | 11.26 | 207.15 | 0.4142 | 746.0 | 622.2 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -15.95 | 245.39 | 10.87 | 205.75 | 0.4192 | 802.0 | 571.9 | |
| 0.00 | 2.26 | 0.00 | 1.23 | -16.13 | 244.98 | 10.46 | 204.70 | 0.4191 | 874.0 | 697.7 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -17.27 | 242.14 | 7.62 | 197.65 | 0.4197 | -918.0 | -692.8 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -17.39 | 241.15 | 6.63 | 195.40 | 0.4171 | -737.0 | -598.8 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -17.02 | 241.01 | 6.49 | 195.33 | 0.4108 | -872.0 | -615.9 | |
| 3.70 | 6.41 | 2.01 | 3.48 | -17.15 | 240.31 | 5.79 | 193.67 | 0.4100 | -936.0 | -779.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
