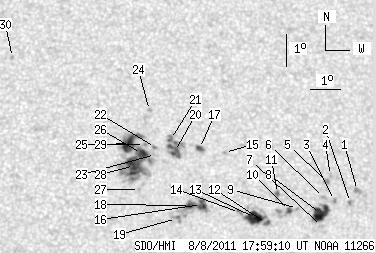

SDO HMI 2011-08-08 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.45 | 268.81 | 55.76 | 138.24 | 19.76 | 241.60 | 7.63 | 332.12 | 0.2698 | 7.6 | 91.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-08 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.51 | 0.00 | 2.35 | 19.29 | 246.75 | 12.79 | 317.51 | 0.3106 | -913.0 | -778.0 | |
| 0.00 | 2.35 | 0.00 | 1.22 | 18.93 | 246.49 | 12.53 | 317.22 | 0.3034 | -1107.0 | -869.0 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 19.00 | 245.97 | 12.01 | 318.56 | 0.2985 | -1016.0 | -840.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 19.78 | 245.90 | 11.93 | 320.50 | 0.3072 | -699.0 | -568.8 | |
| 0.00 | 3.61 | 0.00 | 1.88 | 19.60 | 245.75 | 11.79 | 320.42 | 0.3034 | -882.0 | -775.0 | |
| 0.00 | 2.35 | 0.00 | 1.22 | 19.10 | 245.62 | 11.65 | 319.61 | 0.2958 | -795.0 | -659.7 | |
| 0.00 | 2.08 | 0.00 | 1.07 | 18.20 | 245.49 | 11.52 | 317.75 | 0.2835 | -754.0 | -696.3 | |
| 15.98 | 21.58 | 8.27 | 11.16 | 18.60 | 245.48 | 11.52 | 318.76 | 0.2883 | -1165.7 | -813.2 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 18.78 | 244.74 | 10.78 | 320.98 | 0.2825 | -1041.0 | -837.4 | |
| 2.80 | 9.66 | 1.44 | 4.98 | 18.72 | 244.48 | 10.51 | 321.52 | 0.2790 | -957.6 | -707.3 | |
| 0.81 | 3.88 | 0.42 | 2.00 | 19.25 | 244.12 | 10.16 | 323.68 | 0.2823 | -962.9 | -659.3 | |
| 2.71 | 32.51 | 1.39 | 16.70 | 18.33 | 243.70 | 9.74 | 322.66 | 0.2660 | -971.7 | -335.1 | |
| 15.80 | -12.00 | 8.11 | -12.00 | 18.52 | 243.33 | 9.36 | 324.18 | 0.2648 | -1155.3 | 999999 | |
| 0.00 | 2.98 | 0.00 | 1.53 | 18.68 | 242.85 | 8.88 | 325.94 | 0.2624 | -874.0 | -692.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 20.57 | 242.46 | 8.50 | 330.86 | 0.2854 | 1021.0 | 701.7 | |
| 6.86 | 27.90 | 3.52 | 14.28 | 18.95 | 241.63 | 7.67 | 330.24 | 0.2553 | -1063.3 | -296.0 | |
| 3.25 | 4.42 | 1.68 | 2.28 | 20.70 | 241.65 | 7.69 | 333.45 | 0.2811 | 938.4 | 651.1 | |
| 4.61 | -16.00 | 2.36 | -16.00 | 18.93 | 241.27 | 7.31 | 331.33 | 0.2519 | -1022.8 | 999999 | |
| 0.00 | 5.15 | 0.00 | 2.63 | 18.53 | 240.80 | 6.84 | 332.10 | 0.2423 | 908.0 | 835.8 | |
| 9.03 | 26.55 | 4.65 | 13.68 | 20.62 | 240.83 | 6.86 | 335.79 | 0.2739 | 1045.5 | 642.2 | |
| 2.53 | -20.00 | 1.30 | -20.00 | 21.00 | 240.71 | 6.75 | 336.73 | 0.2789 | 982.2 | 999999 | |
| 0.00 | 1.90 | 0.00 | 0.98 | 20.75 | 240.21 | 6.25 | 337.92 | 0.2719 | 998.0 | 702.7 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 20.53 | 240.20 | 6.24 | 337.62 | 0.2685 | -36.0 | -21.3 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 21.92 | 240.06 | 6.10 | 339.97 | 0.2892 | 802.0 | 692.1 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 20.85 | 239.85 | 5.89 | 339.19 | 0.2712 | 811.0 | 653.6 | |
| 7.68 | 104.92 | 3.94 | 53.85 | 20.57 | 239.75 | 5.78 | 339.15 | 0.2662 | 1050.1 | 524.7 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 19.44 | 239.64 | 5.68 | 337.80 | 0.2480 | 914.0 | 744.6 | |
| 20.77 | -26.00 | 10.65 | -26.00 | 20.20 | 239.50 | 5.54 | 339.41 | 0.2589 | 1175.8 | 999999 | |
| 15.62 | -26.00 | 8.03 | -26.00 | 20.89 | 239.37 | 5.40 | 340.82 | 0.2690 | 910.7 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 23.63 | 235.59 | 1.62 | 355.03 | 0.3010 | 798.0 | 625.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
