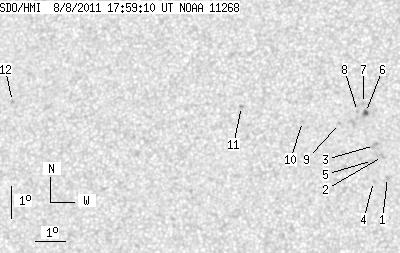

SDO HMI 2011-08-08 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.17 | 21.20 | 1.12 | 10.99 | 20.01 | 224.53 | -9.44 | 31.97 | 0.2877 | -716.1 | -576.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-08 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.79 | 18.67 | 226.47 | -7.50 | 29.79 | 0.2498 | -900.0 | -666.9 | |
| 0.00 | 1.99 | 0.00 | 1.02 | 19.33 | 226.27 | -7.69 | 29.08 | 0.2609 | -886.0 | -756.7 | |
| 0.00 | 3.52 | 0.00 | 1.81 | 19.67 | 226.00 | -7.96 | 29.27 | 0.2681 | -861.0 | -741.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 18.54 | 226.02 | -7.94 | 31.51 | 0.2518 | -831.0 | -682.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 19.20 | 225.96 | -8.01 | 30.33 | 0.2617 | -880.0 | -713.5 | |
| 2.17 | 3.43 | 1.12 | 1.77 | 20.69 | 225.65 | -8.31 | 28.38 | 0.2858 | -1044.4 | -845.4 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 20.98 | 225.57 | -8.39 | 28.12 | 0.2905 | -729.0 | -559.1 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 20.72 | 225.38 | -8.58 | 29.08 | 0.2883 | -820.0 | -640.2 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 20.34 | 224.82 | -9.15 | 31.37 | 0.2876 | -785.0 | -523.3 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 20.38 | 223.60 | -10.37 | 34.49 | 0.2992 | -727.0 | -486.5 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 20.81 | 221.54 | -12.42 | 38.41 | 0.3250 | -988.0 | -793.1 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 20.74 | 213.79 | -20.17 | 51.54 | 0.4136 | 898.0 | 682.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
