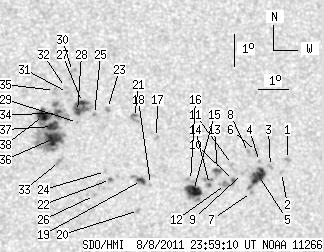

SDO HMI 2011-08-08 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.26 | 239.85 | 42.23 | 124.56 | 19.91 | 241.57 | 10.93 | 323.51 | 0.3011 | 44.6 | 172.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-08 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.10 | 19.30 | 247.02 | 16.38 | 310.73 | 0.3528 | -920.0 | -748.1 | |
| 0.00 | 1.81 | 0.00 | 0.95 | 18.90 | 246.78 | 16.14 | 310.21 | 0.3459 | -882.0 | -633.2 | |
| 0.00 | 2.44 | 0.00 | 1.29 | 19.10 | 246.43 | 15.79 | 311.25 | 0.3435 | -940.0 | -667.9 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 19.26 | 246.08 | 15.44 | 312.23 | 0.3409 | -734.0 | -543.6 | |
| 12.91 | 19.33 | 6.79 | 10.15 | 18.83 | 246.01 | 15.37 | 311.35 | 0.3356 | -1042.3 | -860.0 | |
| 0.00 | 3.25 | 0.00 | 1.71 | 19.58 | 246.01 | 15.37 | 313.07 | 0.3434 | -645.0 | -594.1 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 18.31 | 245.73 | 15.09 | 310.59 | 0.3268 | -903.0 | -653.7 | |
| 0.00 | 2.80 | 0.00 | 1.47 | 19.55 | 245.74 | 15.10 | 313.50 | 0.3399 | -756.0 | -627.9 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 18.90 | 245.48 | 14.84 | 312.47 | 0.3299 | -757.0 | -596.6 | |
| 1.72 | 2.98 | 0.90 | 1.56 | 18.69 | 245.17 | 14.52 | 312.56 | 0.3239 | -943.4 | -745.7 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 19.19 | 245.18 | 14.53 | 313.71 | 0.3293 | -617.0 | -538.2 | |
| 0.00 | 3.61 | 0.00 | 1.89 | 18.58 | 244.89 | 14.25 | 312.79 | 0.3193 | -989.0 | -940.5 | |
| 3.07 | 5.42 | 1.61 | 2.83 | 19.02 | 244.66 | 14.02 | 314.28 | 0.3213 | -821.9 | -840.1 | |
| 1.26 | 5.78 | 0.66 | 3.01 | 18.59 | 244.36 | 13.72 | 313.85 | 0.3131 | -1097.1 | -828.3 | |
| 13.18 | 19.51 | 6.86 | 10.14 | 18.42 | 243.82 | 13.18 | 314.53 | 0.3048 | -1139.0 | -836.0 | |
| 0.00 | 3.79 | 0.00 | 1.97 | 18.73 | 243.75 | 13.10 | 315.44 | 0.3074 | -36.0 | -50.6 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 20.10 | 242.73 | 12.09 | 320.77 | 0.3124 | 823.0 | 654.8 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 18.64 | 242.43 | 11.78 | 318.14 | 0.2912 | -742.0 | -552.1 | |
| 3.61 | 7.22 | 1.87 | 3.74 | 18.77 | 242.14 | 11.50 | 319.13 | 0.2897 | -1044.2 | -831.6 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 17.84 | 241.98 | 11.34 | 317.21 | 0.2767 | 919.0 | 748.6 | |
| 0.00 | 6.05 | 0.00 | 3.16 | 20.74 | 242.05 | 11.41 | 323.66 | 0.3136 | 716.0 | 729.9 | |
| 0.36 | 1.72 | 0.19 | 0.89 | 18.82 | 241.13 | 10.49 | 321.76 | 0.2796 | -1003.8 | -829.1 | |
| 0.00 | 2.35 | 0.00 | 1.22 | 21.04 | 241.18 | 10.54 | 326.33 | 0.3093 | 877.0 | 696.5 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 19.07 | 240.98 | 10.34 | 322.72 | 0.2813 | -642.0 | -462.6 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 20.86 | 240.74 | 10.10 | 327.09 | 0.3028 | 925.0 | 763.6 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 18.33 | 240.58 | 9.94 | 322.06 | 0.2676 | 895.0 | 789.9 | |
| 2.71 | 18.51 | 1.41 | 9.62 | 21.24 | 240.37 | 9.73 | 328.75 | 0.3048 | 923.2 | 874.1 | |
| 3.70 | -27.00 | 1.92 | -27.00 | 20.96 | 240.19 | 9.54 | 328.71 | 0.2993 | 1181.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 20.62 | 240.16 | 9.52 | 328.11 | 0.2943 | 759.0 | 657.4 | |
| 0.00 | 3.07 | 0.00 | 1.60 | 22.23 | 240.10 | 9.46 | 331.12 | 0.3164 | 682.0 | 604.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 21.57 | 239.89 | 9.25 | 330.55 | 0.3054 | 811.0 | 629.8 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 21.72 | 239.84 | 9.19 | 330.96 | 0.3072 | 571.0 | 418.1 | |
| 0.00 | 4.15 | 0.00 | 2.14 | 19.41 | 239.50 | 8.86 | 327.52 | 0.2717 | 1040.0 | 810.1 | |
| 3.79 | 104.21 | 1.96 | 53.83 | 20.91 | 239.52 | 8.88 | 330.38 | 0.2930 | 952.1 | 585.2 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 21.64 | 239.47 | 8.82 | 331.79 | 0.3030 | -390.0 | -327.4 | |
| 15.44 | -34.00 | 7.97 | -34.00 | 20.13 | 239.35 | 8.70 | 329.41 | 0.2804 | 1172.8 | 999999 | |
| 7.59 | -34.00 | 3.92 | -34.00 | 20.51 | 239.33 | 8.69 | 330.16 | 0.2857 | 1095.5 | 999999 | |
| 11.92 | -34.00 | 6.17 | -34.00 | 20.86 | 239.06 | 8.42 | 331.56 | 0.2885 | 945.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
