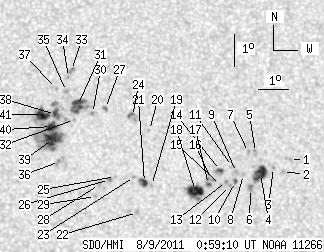

SDO HMI 2011-08-09 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.89 | 236.16 | 44.17 | 122.89 | 19.91 | 241.54 | 11.45 | 322.27 | 0.3062 | 36.6 | 159.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-09 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.52 | 0.00 | 1.87 | 19.28 | 247.11 | 17.02 | 309.68 | 0.3606 | -687.0 | -591.9 | |
| 0.00 | 2.17 | 0.00 | 1.15 | 18.92 | 246.84 | 16.75 | 309.27 | 0.3536 | -766.0 | -548.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 19.05 | 246.55 | 16.46 | 310.03 | 0.3513 | -898.0 | -721.4 | |
| 14.00 | 17.70 | 7.38 | 9.33 | 18.88 | 246.10 | 16.01 | 310.37 | 0.3439 | -1036.7 | -723.2 | |
| 0.00 | 2.44 | 0.00 | 1.29 | 19.53 | 246.00 | 15.91 | 312.05 | 0.3493 | -672.0 | -696.9 | |
| 0.00 | 3.70 | 0.00 | 1.95 | 18.42 | 245.72 | 15.63 | 309.91 | 0.3347 | -1056.0 | -833.9 | |
| 0.00 | 1.99 | 0.00 | 1.05 | 19.54 | 245.76 | 15.67 | 312.46 | 0.3465 | -908.0 | -706.3 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 18.86 | 245.53 | 15.44 | 311.29 | 0.3367 | -838.0 | -653.8 | |
| 0.00 | 2.44 | 0.00 | 1.28 | 18.93 | 245.30 | 15.21 | 311.85 | 0.3346 | -782.0 | -686.6 | |
| 1.35 | 1.99 | 0.71 | 1.04 | 18.65 | 245.24 | 15.15 | 311.30 | 0.3311 | -880.9 | -892.0 | |
| 0.00 | 1.90 | 0.00 | 1.00 | 19.12 | 245.19 | 15.10 | 312.50 | 0.3352 | -691.0 | -567.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 18.53 | 245.07 | 14.98 | 311.32 | 0.3277 | -964.0 | -873.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 18.66 | 244.95 | 14.85 | 311.85 | 0.3275 | -975.0 | -889.2 | |
| 2.44 | 5.06 | 1.28 | 2.65 | 19.01 | 244.78 | 14.69 | 312.98 | 0.3291 | -861.2 | -771.1 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 18.54 | 244.74 | 14.64 | 311.95 | 0.3237 | -882.0 | -718.9 | |
| 0.00 | 3.25 | 0.00 | 1.70 | 18.73 | 244.46 | 14.36 | 312.94 | 0.3223 | -827.0 | -743.1 | |
| 1.26 | 2.26 | 0.66 | 1.18 | 18.58 | 244.34 | 14.25 | 312.78 | 0.3193 | -1013.8 | -898.4 | |
| 12.64 | 19.78 | 6.59 | 10.31 | 18.41 | 243.90 | 13.81 | 313.22 | 0.3121 | -1155.2 | -839.9 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 18.60 | 242.47 | 12.37 | 316.69 | 0.2974 | -707.0 | -539.9 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 20.31 | 242.53 | 12.44 | 320.44 | 0.3186 | 837.0 | 623.7 | |
| 3.97 | 6.05 | 2.06 | 3.14 | 18.69 | 242.24 | 12.15 | 317.42 | 0.2960 | -987.3 | -892.1 | |
| 0.00 | 2.44 | 0.00 | 1.26 | 17.77 | 241.95 | 11.86 | 315.78 | 0.2818 | 934.0 | 603.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 18.89 | 241.93 | 11.84 | 318.61 | 0.2948 | -916.0 | -651.3 | |
| 0.00 | 6.41 | 0.00 | 3.35 | 20.76 | 242.01 | 11.91 | 322.55 | 0.3188 | 851.0 | 705.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 18.90 | 241.31 | 11.21 | 320.12 | 0.2882 | -758.0 | -616.3 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 18.81 | 241.11 | 11.01 | 320.40 | 0.2849 | -970.0 | -769.8 | |
| 0.00 | 2.53 | 0.00 | 1.32 | 21.03 | 241.13 | 11.04 | 325.11 | 0.3138 | 870.0 | 637.7 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 18.66 | 240.77 | 10.68 | 320.90 | 0.2795 | 804.0 | 657.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 18.29 | 240.62 | 10.52 | 320.40 | 0.2732 | 870.0 | 604.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 20.88 | 240.69 | 10.60 | 325.88 | 0.3077 | 887.0 | 730.8 | |
| 13.10 | 18.06 | 6.81 | 9.40 | 21.15 | 240.21 | 10.12 | 327.56 | 0.3068 | 1017.1 | 694.6 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 20.71 | 240.08 | 9.99 | 327.06 | 0.2997 | 777.0 | 556.3 | |
| 0.00 | 3.25 | 0.00 | 1.70 | 22.25 | 240.09 | 10.00 | 329.83 | 0.3211 | 700.0 | 593.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 22.03 | 239.97 | 9.88 | 329.74 | 0.3171 | 899.0 | 712.6 | |
| 0.00 | 2.17 | 0.00 | 1.13 | 21.59 | 239.88 | 9.78 | 329.22 | 0.3101 | 870.0 | 630.7 | |
| 0.00 | 5.60 | 0.00 | 2.89 | 19.40 | 239.51 | 9.42 | 325.93 | 0.2766 | 981.0 | 686.3 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 21.69 | 239.55 | 9.46 | 330.22 | 0.3088 | -743.0 | -494.3 | |
| 4.52 | 101.60 | 2.34 | 52.56 | 20.88 | 239.47 | 9.37 | 328.98 | 0.2966 | 969.6 | 584.4 | |
| 14.54 | -38.00 | 7.51 | -38.00 | 20.12 | 239.35 | 9.26 | 327.84 | 0.2852 | 1191.6 | 999999 | |
| 6.50 | -38.00 | 3.36 | -38.00 | 20.50 | 239.31 | 9.22 | 328.69 | 0.2900 | 1096.7 | 999999 | |
| 10.57 | -38.00 | 5.47 | -38.00 | 20.88 | 239.04 | 8.95 | 330.14 | 0.2931 | 975.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
